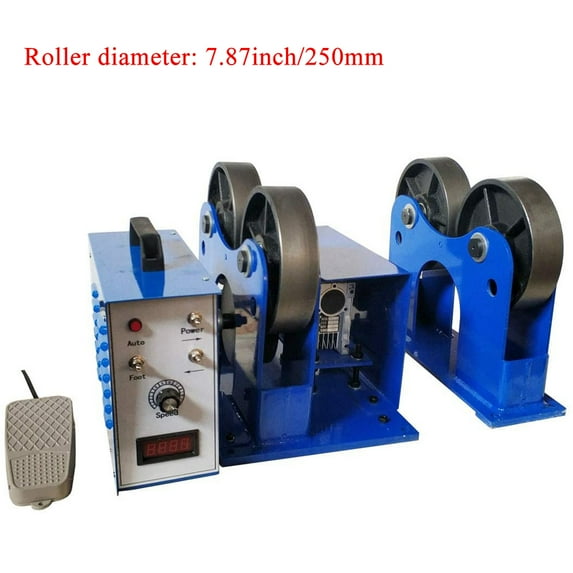

PreAsion Welding Tank Turning Rolls Iron Welding Positioner Welder Roller Dia250mm

Connected Welding Roller Rack is composed of base, driving roller, driven roller, bracket, transmission device, power unit drive, etc. It is a professional welding assistant equipment, can be matched to welding operation machine and submerged arc welding machine, etc. The machine mainly applied to pipeline welding include inside and outside of the pipe.

Parameter
Voltage: 110V
Frequency: 60Hz
Power: 125W
Load Capacity: 2200 LBS/1T
Working speed: 80~1100 mm/min
Roller diameter: 9.84inch/250mm
Roller width: 1.57inch/40mm
Roller material: Iron
Applicable workpiece diameter: 0.79~31.5inch/20~800mm
Operation Method: Control Box Operation
Active Wheel Size: 19.69*11.81*15.75inch/500*300*400mm
Net Weight (Active/Driven): 159.8lb/72.5KG

Attentions:
1.For safety reasons, must be connected to a reliable safety grounding device must have three feet with ground connection.
2.When used for argon arc welding, the machine needs to be directly grounded.
3. Unplug the power cable/cord, if the machine will not be used in a long time.
4.Do not exceed the maximum load-bearing range of the machine.
5.Not recommended to use this machine for parts that are too fine.
6.Do not use hands to stop the roller when the machine is working

Item Included: 022191
PreAsion Welding Tank Turning Rolls Iron Welding Positioner Welder Roller Dia250mm
