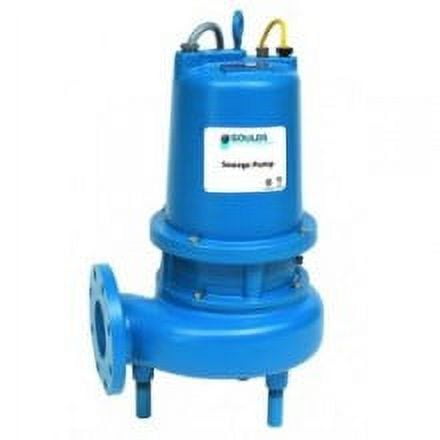

Goulds 4SD52H3BA, 4SD Series, Sewage Pump With Seal Sensor Probe, 3 HP, 230 Volts, 3 Phase, 4" Flanged Horizontal Discharge, 485 GPM Max
(No ratings yet)
Key item features
- Non-Clog Impeller: Features a cast iron, two vane semi-open impeller with pump-out vanes for mechanical seal protection and balanced operation.
- Efficient Design: Utilizes a volute type casing for maximum efficiency in sewage handling applications.
- Flange Conformance: 4" flange conforms to 125 # ANSI standard, connecting to A10-40 or A10-60 guide rail systems for easy installation.
- Dual Mechanical Seal: Equipped with a dual mechanical seal with silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, along with stainless steel metal parts and BUNA-N elastomers for enhanced durability and reliability.
- Oil-Filled Chamber: Upper and lower shaft seals are positioned independently and separated by an oil-filled chamber, ensuring effective sealing and fault indication.
- Seal Sensor Probe: Includes a seal sensor probe located in the oil-filled chamber, signaling to the pump control panel in case of seal failure (Requires optional seal fail circuit in the control panel).
- Stainless Steel Construction: Shaft constructed with 300 series stainless steel keyed design, along with fasteners made of 300 series stainless steel for corrosion resistance.
- Dry Run Capability: Capable of running dry without damage to components, ensuring longevity and reliability.
- Continuous Duty Motor: Motor is rated for continuous duty when fully submerged, ensuring reliable performance in sewage pumping applications.
- Insulation and Protection: Features Class F insulation and Class 10 overload protection, providing additional safety and durability.
- Standards Compliance: Tested to UL 778 and CSA 22.2 108 standards and CSA listed for quality assurance.
- Applications: Suitable for a variety of residential, commercial, and industrial applications including sewage systems, flood and pollution control, dewatering/effluent, farms, hospitals, trailer courts, and motels.
Specs
- Horsepower3 HP
- Gallons per minute485 GPM
- BrandGoulds
- FeaturesDurable, Easy Installation
- Has written warrantyNo
- Count1
Current price is USD$9,354.03
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Ships to
Arrives by Fri, May 22
|
Sold and shipped by Pump Products
1 star out of 5, based on 2 seller reviews(1.0)2 seller reviews
Free 30-day returns
About this item
Product details
Goulds 4SD52H3BA 4SD Series Sewage Pump with Seal Sensor Probe
The Goulds 4SD Dual Seal Sewage Pump is a heavy-duty solution designed to handle sewage containing up to 3-inch non-abrasive solids. Suitable for use on guide rail systems and base elbow disconnect systems fitted with vertical 125# ANSI flanges for horizontal discharge, this pump offers reliable and efficient performance in various residential, commercial, and industrial applications. With its durable construction and advanced features, it ensures smooth operation and long-term reliability in demanding sewage handling environments.
Specifications:
• Horsepower: 3 HP
• Voltage: 230 Volts
• Phase: 3 Phase
• Discharge Size: 4" Flanged Horizontal
• Maximum Flow Rate: 485 GPM
• Maximum Head: 46 ft
• Cord Length: 20 ft
• Material: Cast Iron
• Shaft Material: 300 Series Stainless Steel
• Impeller Type: Semi-Open, Non-Clog
• Seal Type: Dual Mechanical Seal
• Applications: Residential, Commercial, Industrial
Upgrade your sewage handling system with the Goulds 4SD52H3BA 4SD Series Sewage Pump, designed for reliable and efficient performance in various demanding applications.
- Non-Clog Impeller: Features a cast iron, two vane semi-open impeller with pump-out vanes for mechanical seal protection and balanced operation.
- Efficient Design: Utilizes a volute type casing for maximum efficiency in sewage handling applications.
- Flange Conformance: 4" flange conforms to 125 # ANSI standard, connecting to A10-40 or A10-60 guide rail systems for easy installation.
- Dual Mechanical Seal: Equipped with a dual mechanical seal with silicon carbide vs. silicon carbide outer seal and ceramic vs. carbon inner seal, along with stainless steel metal parts and BUNA-N elastomers for enhanced durability and reliability.
- Oil-Filled Chamber: Upper and lower shaft seals are positioned independently and separated by an oil-filled chamber, ensuring effective sealing and fault indication.
- Seal Sensor Probe: Includes a seal sensor probe located in the oil-filled chamber, signaling to the pump control panel in case of seal failure (Requires optional seal fail circuit in the control panel).
- Stainless Steel Construction: Shaft constructed with 300 series stainless steel keyed design, along with fasteners made of 300 series stainless steel for corrosion resistance.
- Dry Run Capability: Capable of running dry without damage to components, ensuring longevity and reliability.
- Continuous Duty Motor: Motor is rated for continuous duty when fully submerged, ensuring reliable performance in sewage pumping applications.
- Insulation and Protection: Features Class F insulation and Class 10 overload protection, providing additional safety and durability.
- Standards Compliance: Tested to UL 778 and CSA 22.2 108 standards and CSA listed for quality assurance.
- Applications: Suitable for a variety of residential, commercial, and industrial applications including sewage systems, flood and pollution control, dewatering/effluent, farms, hospitals, trailer courts, and motels.
