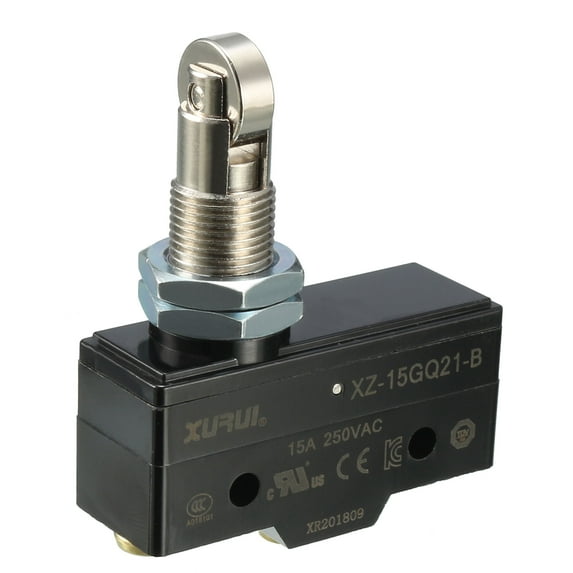

XZ-15GQ21-B Panel Mount Roller Plunger Type Micro Switch

Features
Adopt phenolic plastic or thermoplastic;
Offers long service and operations life.
Small contact gap, snap action, high sensitivity and small operating travel
Widely used in appliance, electronic equipment, machine, communication equipment, electric, apparatus and instrument, electro motion tool , etc.

Specification
Rating: 15A 250VAC
OF max.    350-450g
Force min.    114g
PT max.    0.5mm
OT min. 4.0mm
Movement Differential max.    0.1mm
Operating Position 32.1+/-1.2mm
Contact Form: SPDT NO+NC
Terminal number: 3
Operation speed: 0.1mm-1m/s
Insulation resistance: 100m Ohm Above DC500V
Contact resistance: 25m Ohm initial value
Life: 100000 times above(Electrical); 1000000 times above(Mechanical)
Protection degree: IP40
Operating temperature: -25~+80°C
Certification: UL/CE/KC
Overall size: 50x62x17mm/1.97x2.44x0.67inch(L*W*H)
Total weight: 58g

Package Content
1 x Micro Switch
