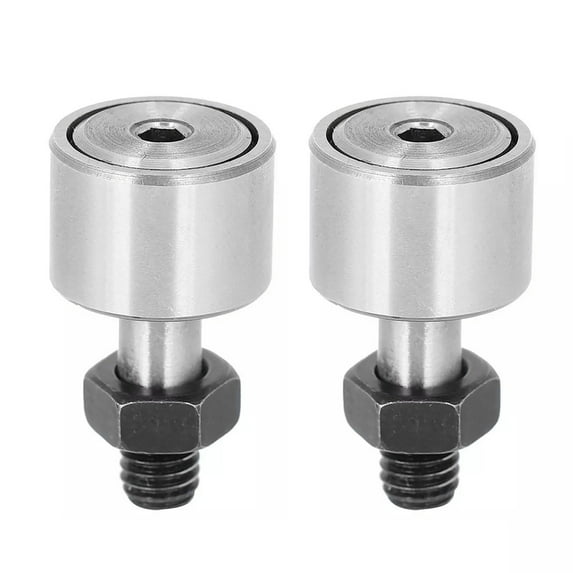

2Pcs CF6 (KR16) Needle Roller Bearing High Accuracy for Guide Rollers in Cam Systems and Linear Motion

Features:
A cam follower, also known as a track follower, is a specialized type of roller or needle bearing specifically designed to follow the profiles of cam lobes.
The thick-walled outer ring of the cam follower enables it to withstand high radial loads while minimizing distortion and bending stresses.
The stud-type cam follower replaces the need for a standard bearing and bolt, making it easier to use and capable of handling higher loads.
Cam follower bearings exhibit high rigidity and accuracy, which is crucial for cam mechanisms and straight-line movements. They are used in a wide range of applications, including machine tools, industrial robots, and electronic component machinery.
Cam followers serve as guide rollers for cam mechanisms or linear motion systems.

Specifications：
Model: CF6 (KR16)
Bearing Material: GCr15 Steel
Cage Material: Mild Steel
Roller Diameter: 16mm
Roller Width: 11mm
Stud Diameter: 6mm
Stud Length: 16mm
Thread Size: M6x1.0mm
Thread Length: 8mm
Overall Length (Max.): 28.2mm
Dynamic Load Rating (Cr): 0.27kN
Static Load Rating (Co): 0.17kN

Package Included:
2 x CF6 (KR16) Needle Roller Bearing
