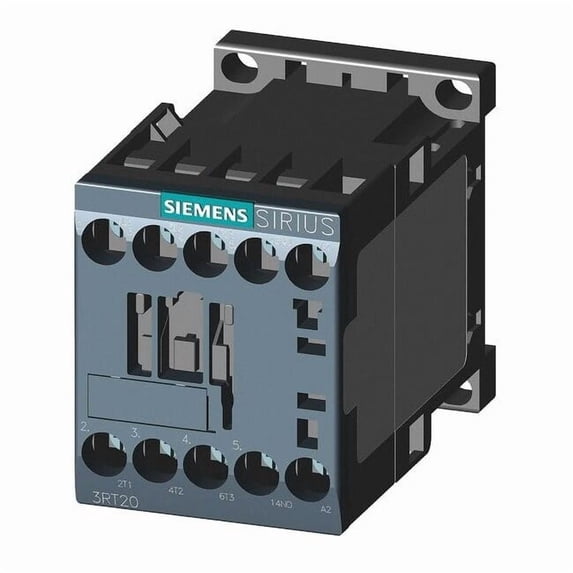

IEC Magnetic Contactor, 1NO, 220V-240V AC, 3 P, Non-Reversing, Screw 3RT20171AP61

Siemens IEC Magnetic Contactor, 3-pole, with 1 normally open auxiliary contact, coil rated at 220-240 V AC, and non-reversing operation. It is part of the SIRIUS 3RT20 series (frame size S00) and uses screws for electrical connections; rated for switching power circuits within specified standards and conditions. - Action: Non-Reversing - Reversing: No - Poles: 3 - Main Contacts: 3 Normally Open - Auxiliary Contacts: 1 NO - Coil Voltage: 220-240 V AC - Frame Size / Series: S00 / SIRIUS 3RT20 - Mounting Style: DIN Rail, Surface - Mounting Position: Vertical - Electrical Connection: Screws - IP Rating: IP20 - Enclosure: No Enclosure - Maximum Voltage Rating: 690 V AC - Frequency: 50/60 Hz - Max Operating Watts: 6 kW (AC-3); 13 kW (AC-1) - Maximum Operating Temperature: 140 Degrees F - Minimum Operating Temperature: -13 Degrees F - Mechanical Durability: 30,000,000 - Dimensions (H x W x D): 3.08 in x 1.97 in x 2.45 in - Standards: REACH Art 33, WEEE - Embedded Surge Suppressor: No - Includes Auxiliary Contacts: Yes - Item: IEC Magnetic Contactor
