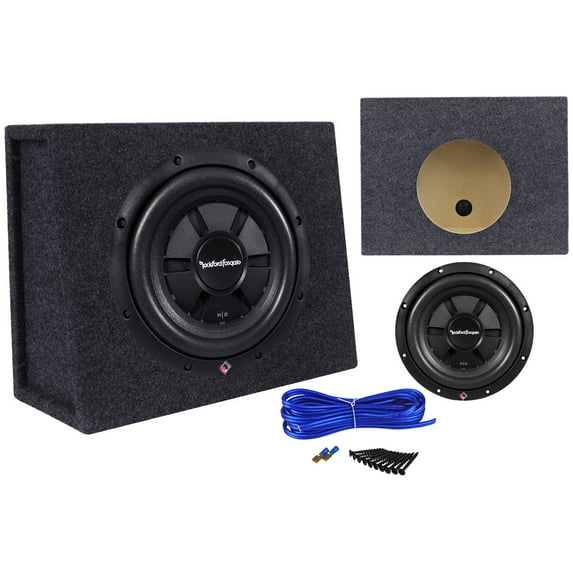

Rockford Fosgate R2SD2-10 10" 400W 2 Ohm Subwoofer + Slim Sub Enclosure Box
Key item features
(1) Rockford Fosgate 10" Subwoofer
(1) Rockville 10" Sealed Sub Enclosure
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Features Of Rockford Fosgate Sub:
12 AWG compression terminals
Anodized aluminum voice coil former
Integrated PVC trim ring
Linear spider with embedded 16 AWG tinsel leads
Mica injected polypropylene cone
Optimized for sealed enclosures
Integrated PVC trim ring
Shallow Motor Assembly
StampCast basket with integrated spider venting
Stitched Tinsel Leads
CEA-2031 Compliant
Specifications:
Size: 10"
Peak Power Handling: 400 Watts
RMS Power Handling: 200 Watts
Nominal Impedance: Dual 2 Ohm
Sensitivity: 82 dB
Voice Coil Diameter: 2" (51mm)
Speaker Connector: Dual 12 AWG compression
Fs: 33 Hz
Qts: 0.69
Vas: 27.7 Liters
Xmax: 8 mm
Woofer Displacement: 0.037 cubic feet (1.05 Liters)
Cutout Diameter: 9.13" (232mm)
Mounting Depth: 3.42" (87mm)
Minimum Sealed Box Volume: 0.50 cubic feet
Optimum Sealed Box Volume: 0.75 cubic feet
Maximum Sealed Box Volume: 0.85 cubic feet
Minimum Ported Box Volume: 0.70 cubic feet
Top-Mount Depth: 4.57"
Cutout Diameter: 9.13"
Click here to view the owners manual
(Link opens in a new window)
Description for Rockville Enclosure:
The RSST10 sealed 10" shallow mount speaker box is made in the USA with Grade“A” ¾” MDF wood. This enclosure is made with precision cutting machinery byindustry experts that have been making these enclosures in the USA for over 20years. All Rockville enclosures come with a customized enhanced glue that isunmatched by any other manufacturer. That means that the carpet will stay inplace and not rip or tear.
Features:
Rockville RSST10 Single 10" Sealed Shallow Mount/Truck Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The BestLevel of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
High quality GOLD spring loaded terminals
Designed, tested, and engineered to work with most of today’s popular woofers.These enclosures are built with the quality additives needed to maximize theperformance of any sound system.
Enclosure Measurements:
Type of Enclosure: Sealed
Enclosure Sub Size: Single10"
Dimensions in Inches: 15" L x 20" W x 7.5 Bottom Depth" x 5" Top Depth
Mounting Depth: up to 5.5" (enough depth for any shallow sub on the market)
Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.10Cubic Feet
Net Volume Per Sub (Measurement for the outer dimensions of the box less thethickness of the wood and port): 0.9 Cubic Feet
Complete Single Subwoofer Enclosure Installation Kit!
Includes:
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
This accessory package includes everything you need to install one subwooferinto an enclosure, and wire to connect the enclosure to your amplifier. Thispackage is a top of the line accessory package which we put together and tested.
