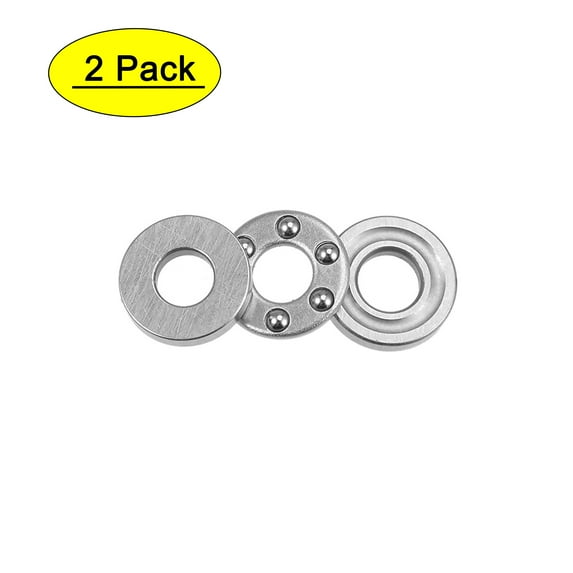

F2.5-6M Miniature Thrust Ball Bearings, 2.5x6x3mm Chrome Steel 2pcs

Description:

• The separable components of thrust ball bearings are interchangeable. This facilitates mounting and dismounting, and maintenance inspections.
• Thrust Ball Bearings are consisted of a shaft washer, a housing washer and a ball and cage assembly.
• They are designed to accommodate axial loads and locate a shaft axially, in one direction only, and must not be subjected to any radial load.
• Chromium Steel (GCr15) Shaft and Housing Washer provide high and uniform hardness, good wear resistance.

Specification:

• Model: F2.5-6M
• Shaft/Housing Washer Material: Chromium Steel (GCr15)
• Bearing Ball Material: Chromium Steel (GCr15)
• Bore Diameter (d): 2.5mm
• Outer Diameter (D): 6mm
• Thickness (B):3mm
• Dynamic Load Rating (Cr): 0.1kN
• Static Load Rating (Cor): 0.078kN
• Limiting Speed (Grease): 11800rpm
• Limiting Speed (Oil): 16000rpm
• Accuracy Class: P0
• Number of Pack: 2 Pcs
