5216 - 102" x 16' Tandem Axle 7K or 10.4K HD Flatbed Deckover Trailer DIY Master Plan - 17 How-to Steps w/ Blueprint Paper - Engineer Approved

Name: 5216 - 102" x 16' Tandem Axle 7K or 10.4K HD Flatbed Deckover Trailer DIY Master Plan - 17 How-to Steps w/ Blueprint Paper - Engineer Approved
Brand: The Trailer Parts Outlet
SKU: 873418987
Price: 125 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

|1 rating

Key item features

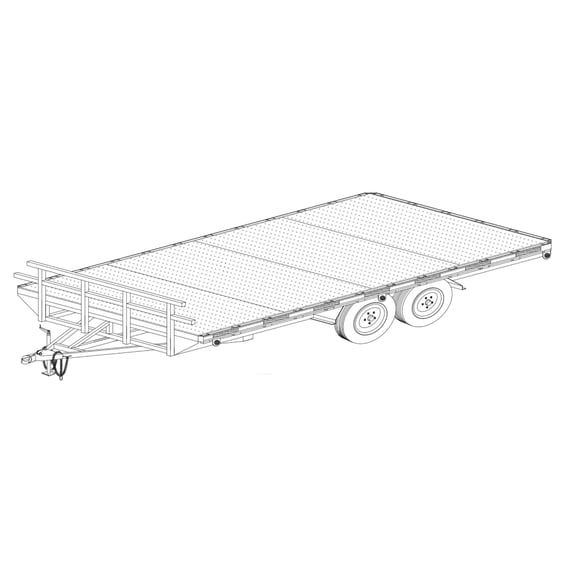

Comprehensive Blueprints: Engineer-approved and stamped full-sized 24" x 36" blueprints are included, detailing the construction of a 102" x 16' tandem axle flatbed deckover trailer.
Versatile Capacity: The trailer design supports a gross capacity of either 7000 lbs or 10,400 lbs, with an empty weight of 2500 lbs and an empty tongue weight of 315 lbs.
Robust Construction: The plan specifies a frame constructed from square tube and channel, with a durable diamond plate deck.
Educational Resource: This DIY master plan is suitable for high school shop and agricultural classes, industry professionals, and do-it-yourselfers, with a beginner difficulty level.
Detailed Instructions: The plan provides 17 how-to steps, a detailed cut list, a full bill of materials, and helpful welding tips for assembly.
Plan Only: This product includes only the blueprint and instructions; it does not come with any trailer parts, materials, steel frame/tubing, plywood, or flooring.

Generated by AI

Specs

Automotive trailer type
Standard Flatbed Trailers
Brand
The Trailer Parts Outlet
Vehicle fitment type
Specific
Weight
2500 lbs
Rec. use
Trailer
Material
Paper

Current price is $125.00

Price when purchased online

Out of stock

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

COPYRIGHT DISCLAIMER:

No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher except in the case of brief quotations embodied in reviews and certain other non-commercial uses permitted by copyright law. By purchasing this product, the purchaser agrees to comply with this disclaimer.

Difficulty Level: Beginner

Specs:

- Bed Size: 16'x102"
- Gross Capacity: 7000 lbs or 10,400 lbs
- Empty Weight: 2500 lbs
- Empty Tongue Weight: 315 lbs
- Frame: Square Tube and Channel
- Deck: Diamond Plate
- **DOES NOT INCLUDE STEEL FRAME/TUBING, PLYWOOD, OR FLOORING**

Features:

- Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
- Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
- Detailed Cut List w/ Full Bill of Materials & Welding Tips
- Tailored TK Trailer Kit to ensure all the right parts for the plan all packaged up for your convenience.

Bed Size: 16'x102", Gross Capacity: 7000 lbs or 10,400 lbs, Empty Weight: 2500 lbs, Empty Tongue Weight: 315 lbs, Frame: Square Tube and Channel, Deck: Diamond Plate
Engineer Approved & Stamped Full Sized 24" x 36" Blueprints
Suitable for High School Shop & Ag Classes, Industry, & Do-it-yourselfers
Detailed Cut List w/ Full Bill of Materials & Welding Tips
Note: This is only a blueprint on how to build a trailer and does not include any trailer parts or materials.
