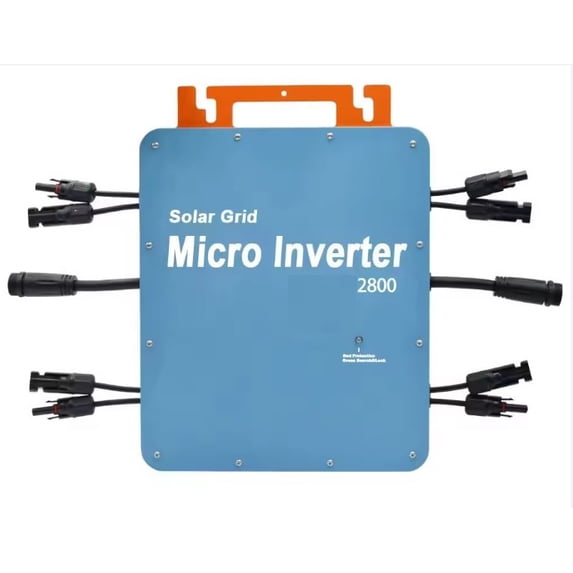

2800W Solar Grid Tie Micro Inverter, 120/240Vac GridOutput, 18-60Vdc Solar Input
(No ratings yet)
Key item features
- Robust Power: This 2800W grid-tie micro inverter supports both 120V and 240V AC grid output, with a solar input range of 18-60V DC, allowing for flexible household grid connections.
- Centralized MPPT: Features centralized Maximum Power Point Tracking, eliminating the need for individual optimizers per solar panel and simplifying system design.
- Enhanced Monitoring: Includes Wi-Fi connectivity for real-time and historical power generation monitoring via the SmartLife mobile application.
- Durable Design: Boasts an IP66 waterproof rating and natural convection cooling for better heat dissipation and protection against environmental elements.
- Flexible Upgradability: Designed to future-proof lower wattage systems, enabling cost-effective upgrades over time without replacing the entire inverter.
- Comprehensive Protection: Incorporates multiple protection functions including isolated island, voltage, frequency, temperature, and current protection for safe operation.
- Efficient Performance: Achieves a peak efficiency of 95% and a nominal MPPT efficiency of 99.5%, with a low night power consumption of less than 1W.
Generated by AI
Specs
- Continuous wattage2800 W
- Volts60 VDC
- BrandSolartorrents
- Has written warrantyNo
- AccessoriesPower able
- ColorBlue & Orange
Current price is USD$399.00
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
This grid-tie / string inverter supports both 120 of household grid, single phase. For 120 Vac to grid, just connect the cable from inverter to any USA household socket. How to connect inverter's AC 3 output pins (Live, Neutral, Ground) to L1, L2, Neutral, Ground of the grid: For 120 Vac: L-L1, N-N, G-G; or L-L2, N-N, G-G Monitor power generation using SmartLife App for cellphone that provide current and historical energy output views, etc.
-
This grid-tie / string inverter supports both 120 of household grid, single phase. When connected to the grid 240Vac, the current is halved that compare to connection to 120Vac. Lower current allows use of thinner electrical wire, lowering wire cost and electrical fire risks. For 120 Vac to grid, just connect the cable from inverter to any USA household socket.
Advantages over competitors:
- MPPT is centralized in this inverter. You do not need an optimizer for each solar panel, e.g, SolarEdge inverters won't work without optimizer at each panel. This inverter's MPPT centralizes and optimizes power generated by panels.
- Future proof your lower wattage inverter, eg, 1000W to be upgraded to 3000W. This inverter will future proof your lower-wattage system, lowering total system cost over time.
- Wifi monitoring of current and historical power generated. Not all competitors' inverter has this feaure.
- Better heat dissipation and waterproofing, achieiving IP66 level.
How to connect inverter's AC 3 output pins (Live, Neutral, Ground) to L1, L2, Neutral, Ground of the grid:
For 120 Vac: L-L1, N-N, G-G; or L-L2, N-N, G-GMonitor power generation using SmartLife App for cellphone that provide current and historical energy output views, etc.
Model 2800W Input Data (DC, PV) Number of Input MC4 Connector 4 sets MPPT Voltage Range 22V-48V Operation Voltage Range 18V-60V Maximum Input Voltage 60V, higher voltage allows use of thinner wires Startup Voltage 22V Maximum Input Power 2800W Maximum input Current 16A*4 Output Data(AC) Single-Phase Grid Type 120V&230V Rated Output Power 2800W Maximum Output Power 2800W Nominal Output Current @120VAC:16.6A Nominal Nominal Output Voltage 120VAC Default Output Voltage Range @120VAC:80V-160V. Good for USA Nominal Output Frequency 60Hz Default Output Frequency Range @50Hz:48Hz-51Hz/@60Hz:58Hz-61HzPower Factor >0.99% THDTotal Harmonic Distortion THD<5% Maximum Units per Branch @120VAC:1units/@230VAC:2units Efficiency Peak Efficiency 95% Nominal MPPT Efficiency 99.5% Night Power Consumption <1W Mechanical Data Operating Ambient Temperature Range -40℃ to +65℃ Storage Temperature Range -40°C to +85C Dimensions(W*H *D) 255mmx340mm x 45mm Weight 3.65kg Max Current of AC Bus Cable 20A Waterproof Grade IP66, suitable for outdoors (moisture/dust proof) Cooling Mode Natural Convection- No Fans noise/to fail, no dust ingrress. Other Features Communication WIFI(Cloud monitoring). Views of current and historical power generated. Transformer Design High Frequency Transformers,Galvanically Isolated Integrated Ground Equipment ground is provided by the PE in the AC cable. No additional ground is required. Protection Functions lsolated Island Protection,Voltage Protection, Frequency Protection, Temperature Protection,Current Protection, etc.
2024 model, better heat dissipation and waterproofing than older competitor models, e.g., WVC - 2800W Grid-tie Inverter with 4 sets of MC4 Connectors
- 120Vac inverter to grid/wall socket electrical/power cable
- Installation hardware
- Antenna for wifi for monitoring current and historical power generated. Download SmartLife for Android or iOS phones
- User Manual
