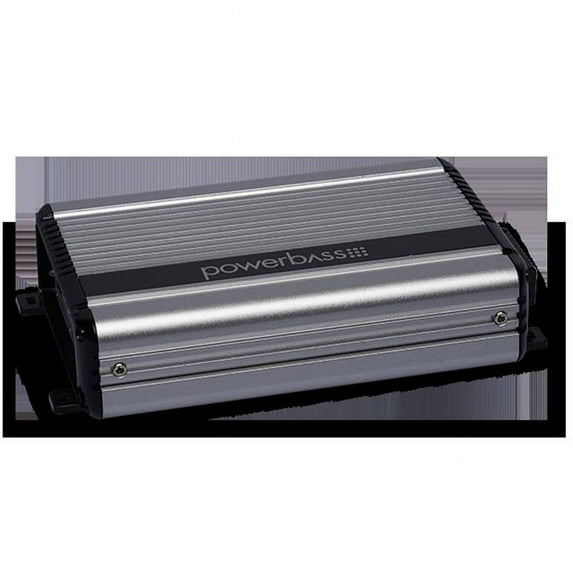

PowerBass XL-605DM - 600 Watt x 1 @ 1-Ohm Mini Class-D Amplifier

PowerBass XL-605DM 600 Watt RMS Monoblock PowerSport Amplifier

The XL series was developed for the growing Power Sports market including UTV and Marine applications, where electronics must withstand harsh damp environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures. These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.

Features -
• 600 Watt High Efficiency Class D Design
• 1-OHM Stable Mono Block Amplifier
• Ultra Low Current Draw
• Double Sided Copper Plated PCB
• Conformal Coated PC Board
• PWM MOSFET Power Supply
• Digital Sound Optimization Circuitry
• High Damping Control Circuit
• Variable Subsonic Filter
• Remote Soft Delay Turn On/Off Circuit
• Variable Low Pass Electronic Crossover
• Variable 12dB Bass Boost EQ
• Variable Gain Control
• Wired Secondary Remote Gain Control Included

Specifications -
• Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
• Variable Subsonic Freq: 10 Hz - 50 Hz
• Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
• Equalization Boost/Cut: 0 - 18 dB
• Subwoofer Frequency Range: 10 Hz - 250 Hz
• 4-ohm Mono Power: 250 watts x 1
• 4-ohm Power: 250 watts x 1
• 1-ohm Mono Power: 600 watts x 1
• 2-ohm Power: 400 watts x 1
• Subwoofer EQ Frequency: 45 Hz
• Variable Subwoofer EQ: 0 - 18 dB
• Low-Pass Crossover Freq: 50 Hz - 250 Hz
• Peak Power: 1200 watts
• Crossover Slope: 24 dB
• Dimensions (in Inches): 8.4" x 4.5" x 1.6"
• Input Sensitivity: 0.25 V - 10.0 V
• S/N Ratio: >85 dB
• Total Harmonic Distortion: 0.4% at Rated Power
• Output Power (14.4 V) @ 4 ohm: 250 watts x 1
• Output Power (14.4 V) @ 2 ohm: 400 watts x 1
• Output Power (14.4 V) @ 1 ohm: 600 watts x 1
• Frequency Response: 10 Hz - 300 Hz
