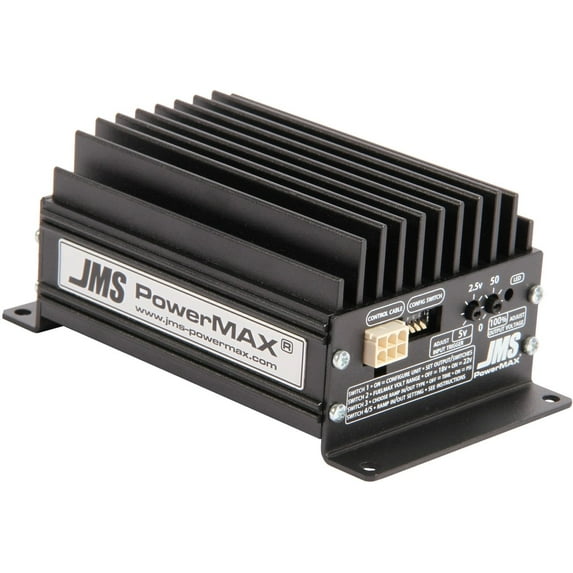

JMS 2008-2020 Fits Dodge Challenger 2006-2020 Fits Dodge Charger 2018-2020 Fits Jeep Grand Cherokee Fuelmax Fuel Pump Voltage Booster V2 Plug & Play Single Output P2000PPD08

Features:

• Adjust the Voltage Ramp In / Out time correct & eliminate fuel pressure spikes
• Single Or Dual Input/ Output Versions
• 4 models available for complete coverage
• LED to visually monitor the status Of your powerMAX Boost-A device
• New Enables 0-5V or Optional Internal Boost
• Works on all vehicles
• Domestics & Imports
• Compatible with all 12V or 16V  battery systems
• Plug & Play Versions
• Simple installation
• Green LED will glow continuously.
• When boosting the output voltage, the green LED will flash slowly.
• While the output voltage is being adjusted via the front panel the green LED will flash quickly.
• After the front panel voltage values have been saved, the green LED will twinkle.

Adjustable Voltage Ramp-In / Ramp Out Model Specific:

• Three different ways to Ramp-in and Ramp-out boosted voltage.
• Ramp-in the boosted voltage over time (Ground, or 0-5V trigger).
• Externally adjustable via dip switch settings.
• Time Settings: O, 0.25, 0.50 and 0.75 seconds
• Ramp in the boosted voltage based on the 0-5VVoltage Trigger,
• Externally adjustable via dip switch settings.
• Range Settings: 0V, 0.5V, 1.0V and 1.5V
• Use the optional internal boost sensor to ramp in the boosted
• voltage based on manifold boost pressure (psi).
• Externally adjustable via dip switch settings.
• Range Settings: OV, 4psi, 8psi and 12psi

Installation Kit Included:

• Enable Wire harness, adapter fitting (1/8th NPT to barb)
• Hobbs switch preset @ 5psi (user adjustable 3-7psi), solder
• heat shrink ring terminals, heat shrink wire splices, tie straps
• self-tapping screws, vacuum line, 1/4" to 3/1 6" vacuum tee
• 3/16" vacuum tee, 3/16 to 3/8" vacuum tee and 30 amp mini-fuse.

Note: The installation kit is specific to each PowerMAX model

Brand: JMS
UPC: 021201230225

• 2008-2020 Fits Dodge Challenger
• 2006-2020 Fits Dodge Charger
• 2018-2020 Fits Jeep Grand Cherokee
