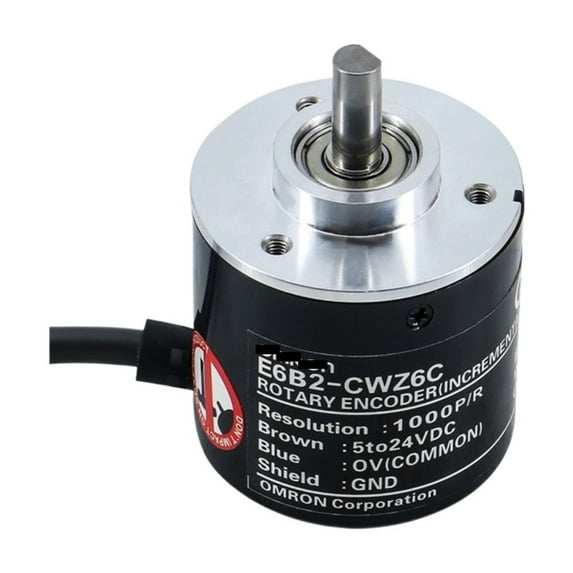

Rotary Encoder E6B2-CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P/R 5-24v -------- ,Stable Internal Structure
Rotary Encoder E6B2-CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P/R 5-24v -------- ,Stable Internal Structure
Hero image 0 of Rotary Encoder E6B2-CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P/R 5-24v -------- ,Stable Internal Structure, 0 of 6
Sunviva

Rotary Encoder E6B2-CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P/R 5-24v -------- ,Stable Internal Structure

(No ratings yet)
Rotary Encoder E6B2-CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P/R 5-24v -------- ,Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal StructureRotary Encoder E6B2 CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P R 5 24v Stable Internal Structure
Condition:E6B2-CWZ3E-Out of stock
Retail Packaging:600PR-Out of stock

Key item features

  • Rotary Encoder E6B2-CWZ6C 20 30 40 60 100 200 360 400 500 600 1000 1024 1800 2000 2500P/R 5-24v
  • 1 Pcs Encoder
  • 1. Imported heat-resistant ABS shell, high-strength protection type
  • 2. Imported NMB bearing, strong pressure resistance, no shaft cla -mping, precise pulse
  • Supply Voltage
  • 5 to 12v DC
  • 5 to 24v DC
  • 5V DC(±5%)
  • 12 to 24 V DC
  • Current Consumption
  • 100mA max
  • 80mA max
  • 160mA max
  • 100mA max
  • Output circuir
  • configuration
  • Voltage output
  • NPN Open
  • Collector Output
  • Line driver
  • output
  • NPN Open
  • Collector Output
  • Output Capacity
  • Output resistance: 2K
  • Residual Voltage:0.4V max
  • Output Current: 20mA max
  • Applied voltage:30VDC max
  • Sink current:35mA max
  • Residual voltage:0.4V max
  • "H" level output voltage:2.5V min
  • (at output current:20mA)
  • "L" level output voltage:0.5V max
  • (at output current 20mA)
  • Source current:35mA max
  • Residual Voltage:0.4V max
  • Maximum Response Frequency
  • 100KHz
  • 50kHz
  • Phase different of output
  • Between output A and output B 90±45°
  • Starting Torque
  • 1mNm max
  • Moment of Inertia
  • 1*10 kg.m² max
  • Slewing Speed
  • 6000r/min
  • Shaft Loading
  • Radial:30N Axial:20N
  • Ambient temperature
  • -10 to +70
  • Ambient humidity
  • 35 to 86% RH
  • Related Products:stepper motor,stepper motor driver
