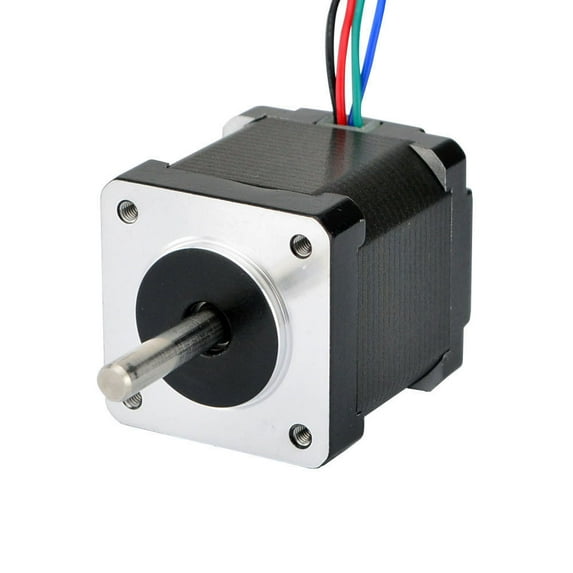

Nema 14 Stepper Motor Bipolar 1.8 Degree 23Ncm (32.6oz.in) 0.5A 35x35x42mm 4 Wires
Nema 14 Stepper Motor Bipolar 1.8 Degree 23Ncm (32.6oz.in) 0.5A 35x35x42mm 4 Wires
Hero image 0 of Nema 14 Stepper Motor Bipolar 1.8 Degree 23Ncm (32.6oz.in) 0.5A 35x35x42mm 4 Wires, 0 of 3
Stepper Online

Nema 14 Stepper Motor Bipolar 1.8 Degree 23Ncm (32.6oz.in) 0.5A 35x35x42mm 4 Wires

(No ratings yet)

Key item features

Electrical Specification:
  • Manufacturer Part Number: 14HS17-0504S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 23Ncm(32.6oz.in)
  • Rated Current/phase: 0.5A
  • Phase Resistance: 15ohms
  • Inductance : 26mH ± 20%(1KHz)
Physical Specification:
  • Frame Size: 35 x 35mm
  • Body Length: 42mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 220g
Connection:
  • A+: Black
  • A-: Green
  • B+: Red
  • B-: Blue
Current price is $20.65
Price when purchased online
Out of stock
