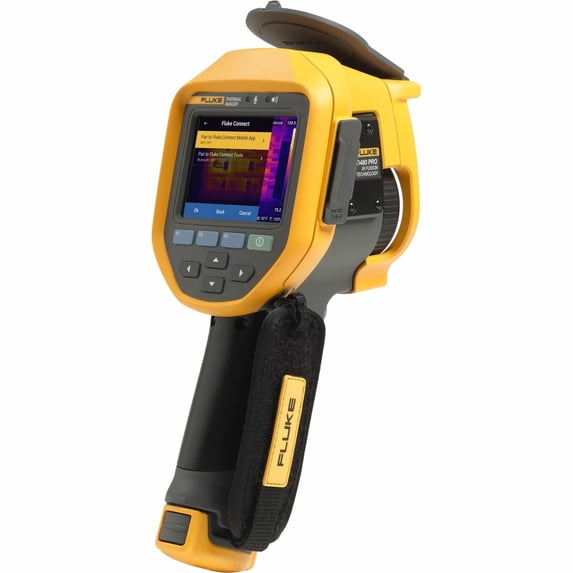

Fluke Ti480 PRO Infrared Camera

Increased sensitivity

Capturing and displaying temperature variances makes all the difference when diagnosing problems. The Fluke Ti480 PRO Infrared Camera has increased thermal sensitivity to capture minute differences and the latest Fluke technology for on-screen clarity to make it easy to visual issues in the field. With the enhanced measurement accuracy and the wider dynamic temperature range-up to 1000 °C with NETD as low as 50 mK-technicians can collect precise information for making informed decisions that boost the company's return on investment.

Sharper onscreen images, multiple rectangle markers, and 9 color palettes

The Ti480 PRO features sharp on-screen images with clear visual color differentiation to speed troubleshooting. It displays deviations from standard temperatures using multiple Delta-T markers, allowing users to choose one as a reference point and the others to display a value as a difference. Multiple rectangle markers in-camera identify min/max temperatures for an area of the equipment or an equipment array. The camera distinguishes heat differences more easily with a new palette and a wider array of yellows and greens in the display.

Interchangeable smart lenses

The 640 x 480 resolution Ti480 PRO features improved, more intuitive touchscreen user interface to speed detection and diagnoses of issues. It is also compatible with all Fluke infrared smart lenses, which include macro, telephoto, and wide-angle options to capture virtually any target. And Fluke smart lenses are interchangeable between compatible cameras without calibration, making it easy to change and share lenses.

The PRO Series takes focus to a new level of clarity with MultiSharp™ Focus that rapidly takes multiple images and combines them to produce one in-focus image. The advanced focusing system enables users to capture an automated, focused image of multiple targets at once, delivering the image clarity needed by professional thermographers and maintenance managers to produce top-quality results and avoid costly rework.

Connected reporting

As part of the Fluke Connect® reliability platform, the wireless Ti480 PRO allows users to upload infrared images from anywhere and combine them with measurement data from multiple Fluke Connect test tools to create and share comprehensive reports from the job site via email and collaborate in real time with other colleagues, increasing productivity in the field.
