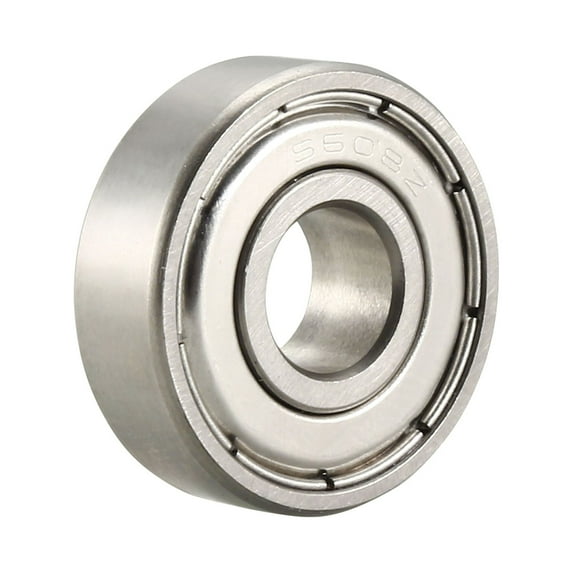

S608ZZ Stainless Steel Ball Bearing 8x22x7mm Shielded S608Z Bearings

NOTE：

Please refer to the picture and select right type of bearings before your order (Sealed or Shield on BOTH or SINGLE side of the bearing). Suffix on the bearing just for differentiating between Sealed and Shield type of bearing. It would not affect the use of our product.

Description:

• Single-row, pre-lubricated, normal accuracy.
• Deep Groove Ball Bearings are one of the most widely used rolling bearings. They are used to accommodate radial and axial loads in both directions.
• With small friction and high-limit speed, Ball Bearings are cost-effective and require little maintenance.
• Stainless steel bearing features stronger rust and corrosion resistance ability to withstand destruction caused by humidity and some other media.
• Suitable for all kinds of industrial equipment, micro motor, small rotary motor, office equipment and so on.



Selection Guide:
Shields (Designation Suffix Z/ZZ) - High speed. Protect from dirt and debris.
Sealed (Designation SuffixRS/2RS) - Made of sheet steel reinforced nitrile butadiene rubber (oil- and liquid-resistant). Lower limit speed than Shield Bearings.


Specification:
Model: S608ZZ
Shield Type: Double Shield
Inner Race/Outer Race Meterial: 440C Stainless Steel (9Cr18)
Cage Material: 304 Stainless Steel (0Cr18Ni9)
Inner Diameter (d): 8mm
Outer Diameter (D): 22mm
Thickness (B): 7mm
Dynamic Load Rating (Cr): 3.30kN
Static Load Rating (Cor): 1.35kN
Accuracy Class: P0 (ABEC-1)
Noise Level: Z2
Number of Pack: 1 Pcs
