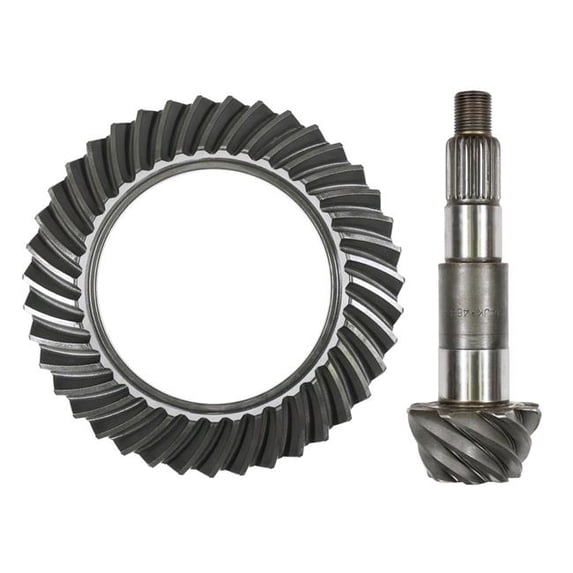

Currie Enterprises CUARP60HT-513 Dana 60 Ring & Pinion Sets - Reverse Rotation

Currie Legacy Gears for Dana 60 axles are forged from 8620 alloy steel for the greatest strength, precision machined for exact factory fit and quiet operation. All Currie Legacy gears are CNC lapped for reduced friction and provide quiet operation, with additional attention to detail of hand dressing each gear to eliminate any possible burrs on gear tooth edges to improve the break-in process.

• Reverse Rotation Gears for High-Pinion Applications
• Forged 8620 Alloy Material for Optimal Strength
• CNC Lapped for Quite Operation
• Hand Dressed to Eliminate Burrs

• Dana 60 Front - Reverse Rotation - Thick Gear 4.10 & Down Carrier

• Material: 8620 alloy steel
• Ring Gear Diameter: 9.7"
• Carrier Break: 4.11 and Down (Thick Gear)
• Gear Rotation: Reverse
• Ring Gear Bolts: 1/2"-20
• Pinion Spline: 29
• Pinion Thread: 7/8"-14
• Pinion Nut Socket: 1 5/16" Socket
• Ring and Pinion Ratio: 5.13:1
• Weight: 25 lbs
