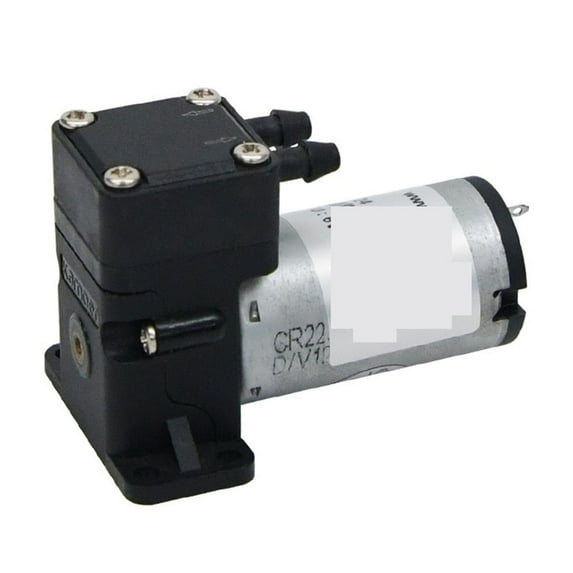

180ml/min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0.3Mpa For Lab And Inkjet ,Support Speed Adjustment

Hero image 0 of 180ml/min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0.3Mpa For Lab And Inkjet ,Support Speed Adjustment, 0 of 7

180ml/min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0.3Mpa For Lab And Inkjet ,Support Speed Adjustment

(No ratings yet)

180ml/min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0.3Mpa For Lab And Inkjet ,Support Speed Adjustment 180ml min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0 3Mpa For Lab And Inkjet High Efficiency Filling 180ml min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0 3Mpa For Lab And Inkjet High Efficiency Filling 180ml min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0 3Mpa For Lab And Inkjet High Efficiency Filling 180ml min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0 3Mpa For Lab And Inkjet High Efficiency Filling 180ml min KLP180 Mini Diaphragm Pump 12V 24V Brush Brushless Motor With EPDM Liquid Pressure 0 3Mpa For Lab And Inkjet High Efficiency Filling

Actual Color:KLP180-E-B12 or 24-Out of stock

Key item features

Brushless motor wire sequence description:
1. Red wire positive; black wire negative; white wire speed control wire; yellow feedback wire; positive and negative pole reverse connection protection function.
2. Two speed regulation modes: PWM and 0-5V. Speed adjustment range: 1500-4200rpm. PWM frequency 10KHZ-30KHZ, volt value: 5V.
3. Yellow line speed feedback, connect oscilloscope probe or host computer. 1 pulse/revolution
4. The uniform speed, the red wire and white wire are connected to the positive pole of the power supply, and the black wire is connected to the negative pole.

Specs

Gallons per minute
1 GPM
Horsepower
1 HP
Power type
Battery
Brand
Momo
Weight
0.04 oz
Has written warranty
No

Current price is $154.82

Price when purchased online

Selected option out of stock

More options available

How do you want your item?

Out of stock

Report an issue with this seller

About this item

Product details

KLP180 Diaphragm pump

Performance Feature

1. Self-priming, Support Idling

2. Low Power Consumption

3. Available Corrosive Liquid

4. Long Service Life

5. Compact Structure

6. Low Noise

7. Small Size

Basic Parameters

Voltage: 12V/24V

Motor:Brush/Brushless Motor

Power: 6W

Flow: 160ml/min

Liquid pressure: 0.3Mpa

Negative Pressure: 0.02Bar

Diaphragm Material: EPDM or FPM (Before your ordering, please contact customer service to confirm the diaphragm material, otherwise, we'll choose EPDM automatically.)

Noise: 58dB

Life time: Brush-500H; Brushless-5000H

Working environment: Temperature 0~40

Relative humidity: less than 80%

Multiple Applications

Labortory, Wastewater Treatment

Inkjet Printing, Liquid Dispensing

Medical Equipment, Industrial Equipment

Packing List

KLP180-E-DC24: 1 × pump.

KLP180-E-DC12: 1 × pump.

E-DC24--Power supply: 1 × pump; 1 × power supply.

E-DC12--Power supply: 1 × pump; 1 × power supply.

KLP180 Structure Description

1. Screw(metal) , 2. Upper cover(Powder metallurgy),3. Gasket(EPDM/PTFE)

4. Upper valve plate(PPS),5. Valve(EPDM/V),6. Lower valve plate(PPS)

7. Diaphragm(EPDM/V),8. Pump body(PA6) ,9. End cover screw(metal)

10. Oil bearing(Copper matrix)11. Back cover(PA6) ,12. Eccentric wheel(aluminum)

13. Bearing positioning ring(NSK/NMB) 14. Pump body screw(metal) 15. Motor(Ferrite)

Related Products:peristaltic pump,dosing pump,aquarium dosing pump,peristaltic pump 12v,liquid filling machine,filling machine,bottle filling machine,bottling machine

Brushless motor wire sequence description:
1. Red wire positive; black wire negative; white wire speed control wire; yellow feedback wire; positive and negative pole reverse connection protection function.
2. Two speed regulation modes: PWM and 0-5V. Speed adjustment range: 1500-4200rpm. PWM frequency 10KHZ-30KHZ, volt value: 5V.
3. Yellow line speed feedback, connect oscilloscope probe or host computer. 1 pulse/revolution
4. The uniform speed, the red wire and white wire are connected to the positive pole of the power supply, and the black wire is connected to the negative pole.
