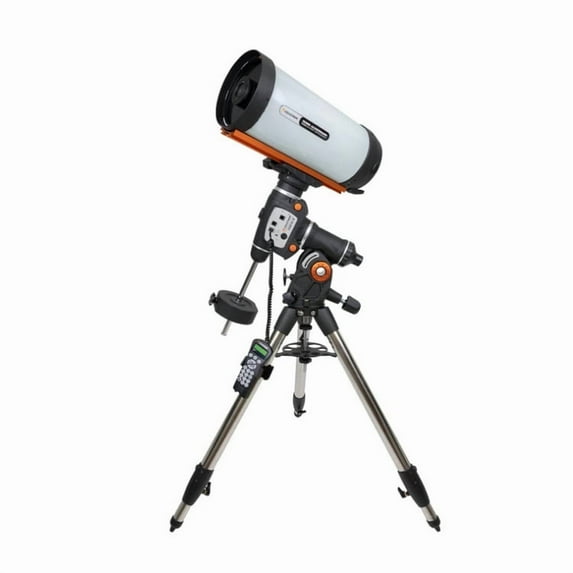

Celestron CGEM II 800 RASA Telescope

Capture spectacular wide-field deep sky images in seconds with Celestron CGEM II 800 RASA Telescope. This incredibly fast f/2.0 system is the perfect companion to today’s color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras. Thanks to its fast focal ratio and patented optical design, you can produce sharp, detailed images and, in many cases, skip the autoguider completely. Weighing in at just 17 pounds, it’s easy to transport your 8-inch RASA to the most remote dark sky locations. This kit combines the 8-inch Rowe-Ackermann Schmidt Astrograph (RASA) with the CGEM II EQ mount.

RASA Performance Made for Everyone

The 8-inch RASA is an imaging telescope that delivers a flat field without optical aberrations for razor sharp stars across a wide field of view. It can capture stunning deep-sky astronomical images without the challenges typically presented by longer focal length instruments at a fraction of the cost of those systems. With the 8-inch RASA, a wider range of astroimagers can enjoy the benefits of the RASA design. It includes features such as the integrated air-cooling system, internal filter mount, and sturdy CGE dovetail mounting bar. Purely designed for imaging, the 8-inch RASA cannot be used visually. The prime focus focal plane is located at the front of the optical system, so it cannot accommodate a traditional eyepiece.

Shorter Exposure Times and Virtual Real-Time Observing

Since it is an F/2.0 optical system, imagers can use shorter exposure times to capture detail in faint objects. When combined with sensitive cameras and the proper live stacking software, the 8-inch RASA can provide an almost real-time observing experience. View images on a computer instantly that are brighter and more detailed than can be seen in much bigger telescopes with the naked eye.

Unique Optical Design

RASA’s optical design is patented (US 2016/0299331 A1) consisting of a Schmidt corrector, primary mirror, lens group, and optical window. The lens group contains 4 elements and utilizes rare-earth elements. Unlike many telescopes that only perform well over the visible spectrum (400-700nm), the optic is designed to perform over a wider spectral range, from 390-800nm. This allows more of the light emitted from the astronomical object to be sharply focused in the image. All refractive optical surfaces are coated with StarBright XLT coatings, while the primary mirror uses enhanced aluminum coatings. This maintains high light transmission through the entire optical system and provides better optical performance and field illumination.

Built for Latest Cameras

Unlike the larger RASAs that work with DSLR and large CCD cameras, the 8-inch model was designed with color astronomical CMOS cameras, smaller CCD cameras, and mirrorless cameras in mind. The telescope does not work with standard DSLR cameras. It is optimized for sensors with up to a 22mm diagonal, but performs well with sensors up to 32mm diagonal. The APS-C sized sensors used in many mirrorless cameras are a good choice. The 42mm full frame sensors will also work, but performance will be poor at the edges of the sensor and field illumination will be reduced.

CGEM II: An Excellent Platform for RASA

CGEM II is a sturdy equatorial mount capable of rigidly supporting the 8-inch RASA. Its 40lb load capacity can handle the 17lb optical tube with ease, leaving lots of capacity to spare for your camera and any accessories. The heavy-duty adjustable height tripod has 2-inch diameter steel tripod legs with graduated markings that make it easy to extend the legs to the same height. The CGEM II has Permanent Periodic Error Correction (PPEC). This allows you to run a routine to record the periodic errors only once; the recording is kept in memory, and subsequently corrects for the
