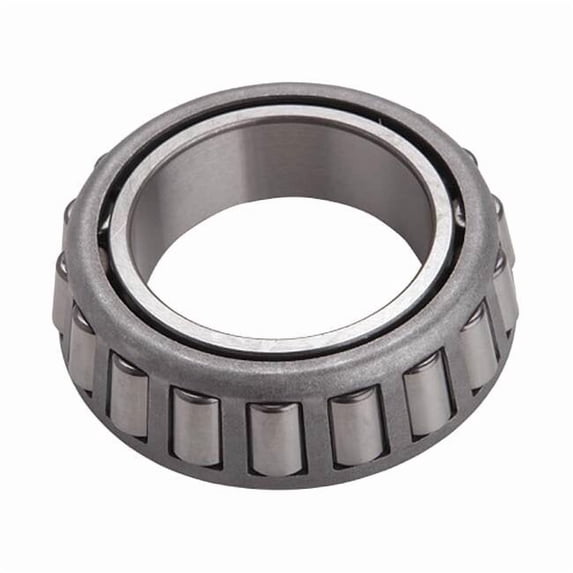

Ntn Tapered Roller Bearing Cone, LM11749 LM11749
Ntn Tapered Roller Bearing Cone, LM11749 LM11749
Hero image 0 of Ntn Tapered Roller Bearing Cone, LM11749 LM11749, 0 of 1
NTN

Ntn Tapered Roller Bearing Cone, LM11749 LM11749

(No ratings yet)

Key item features

  • Bearing Industry Number:LM11749
  • Bore Dia. (In.):0.6875 in
  • Bore Diameter Tolerance:+0.020 to -0 mm
  • Bore Diameter:43/64 in
  • Bore Type:Cylindrical
  • Cage Material:Pressed Steel
  • Compatible Cup Manufacturer Part Number:LM11710
  • Cone Width:0.575 in
  • Dynamic Load Capacity (Lb.):5,350 lb
  • Dynamic Load Capacity:26.4 kN
  • Inside Diameter:0.688 in
  • Item:Tapered Roller Bearing Cone
  • Max. Shaft Fillet Radius (In.):0.05 in
  • Maximum Temperature:250 Degrees F
  • Minimum Temperature:-40 Degrees F
  • Number of Rows:One
  • Outside Diameter:1.457 in
  • Ring Material Grade:52100
  • Ring Material:Alloy Steel
  • Roller Material Grade:52100
  • Roller Material:Alloy Steel
  • Shaft Fillet Radius:1.3 mm
  • Standards:ABMA
  • Static Load Capacity (Lb.):5,450 lb
  • Static Load Capacity:24.2 kN
  • System of Measurement:Inch
  • Temp. Range (F):-40 Degrees to 250 Degrees F
