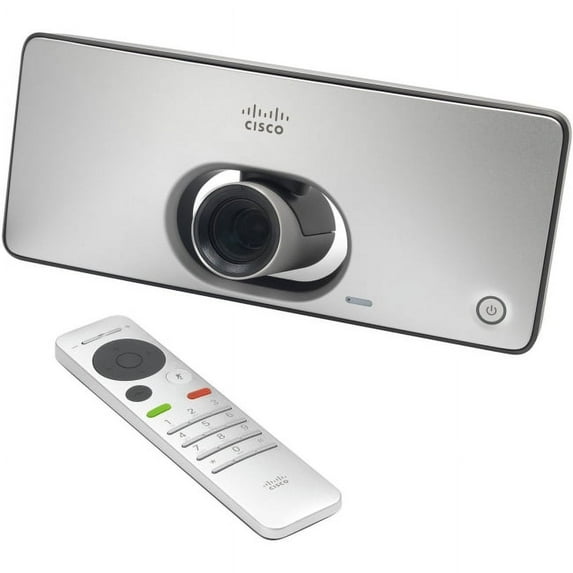

Cisco TelePresence SX10 Quick Set - 1920 x 1080 Video (Live) - Point-to-Point - WXGA - 60 fps - 1 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI OutVGA InAudio Line In - Audio Line Out - USB - Fast Ethern

The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10 you can extend telepresence pervasively throughout your enterprise.

This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while a leadership wide-angle field of view provides the best overview even in small spaces.

General Information

• Manufacturer: Cisco Systems, Inc
• Manufacturer Part Number: CTS-SX10N-K9
• Brand Name: Cisco
• Product Line: TelePresence
• Product Series: SX
• Product Model: SX10
• Product Name: TelePresence SX10 Quick Set
• Product Type: Video Conference Equipment

Technical Information

• ITU-T Recommendation: SIP
• Video Bridging: Point-to-Point

Video

• Graphics Modes (Live): WXGA
• Maximum Video Resolution (Live): 1920 x 1080
• Maximum Frame Rate: 60 fps
• Video Encoding:
  • H.263
  • H.263+
  • H.264

Audio

• Microphone Form Factor: Internal
• Audio Encoding:
  • G.711a
  • G.722
  • G.722.1
  • G.729ab
  • G.729

Network & Communication

• Network Technology: 10/100Base-TX
• Ethernet Technology: Fast Ethernet

Interfaces/Ports

• VGA In: Yes
• HDMI In: Yes
• HDMI Out: Yes
• Audio Line In: Yes
• Audio Line Out: Yes
• Network (RJ-45): Yes
• USB: Yes
• Number of Network (RJ-45) Ports: 1
• Number of HDMI Inputs: 1
• Number of HDMI Outputs: 1

Physical Characteristics

• Form Factor: Wall Mountable
• Height: 4.6"
• Width: 10.8"
• Depth: 3.6"
• Weight (Approximate): 2 lb

Miscellaneous

• Package Contents:
  • SX10 Codec With Integrated HD Camera and Microphone
  • Wall Mount Kit
  • TRC6 Remote Control
  • Network and HDMI Cables

Warranty

• Limited Warranty: 90 Day
