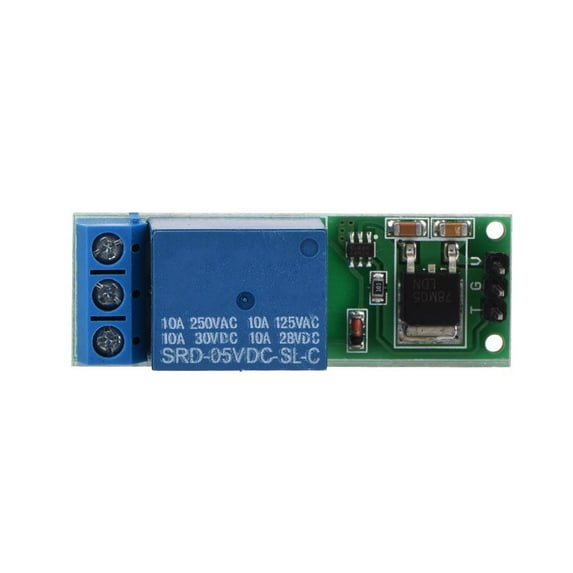

Tebru Bistable Self-locking Switch,Low Pulse Trigger Board,Mini 6-24V Flip-Flop Latch Relay Module Bistable Self-locking Switch Low Pulse Trigger Board

Features:

• 100% and
• Adopted of electronic components, and precision process, ensure for the durability
• This is a bistable self-locking relay module that triggers once the relay pulls and holds; Trigger again, relay release and hold
• Typical applications:Automotive electronics,Industrial equipment,engine, LED,Smart home, Emergency lighting,MCU development board, Toy car
• USE : By default, the relay is release, press the trigger button, the relay pull, press again, the relay release, the third press, the relay pull, and so on

Specification:

Working voltage: DC 6-24v

Operating current: 60-70mA

Standby current: 1UA

Load current: AC 250V / 10A, DC 30V / 10A

Trigger mode: low pulse trigger

Weight: Approx.15g/0.5oz

Module interface:

1. VCC: positive power supply VCC

2. GND: negative power supply GND

3. T : Low pulse trigger

Relay outputs:

1. NO: normally open relay interface

2. COM: Common Interface Relays

3. NC: normally closed relay interface

Package list:

1 x Low Pulse Trigger Board
