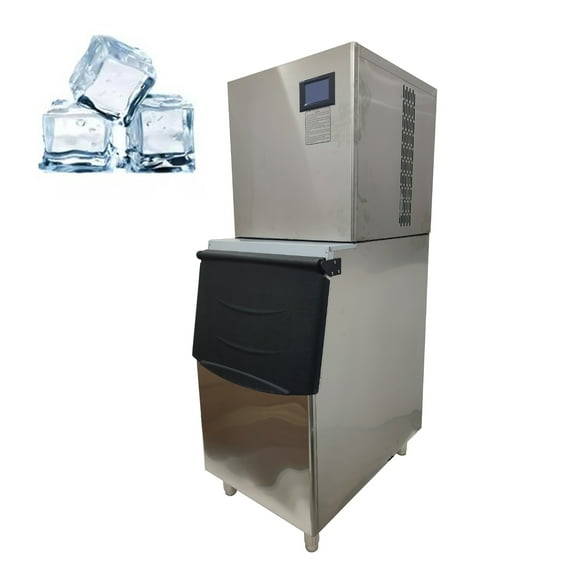

250KG Ice Maker Commercial Ice Machine Ice Cube Maker Stainless Steel

Description:
An ice maker is a refrigeration mechanical equipment that cools water through an evaporator and generates ice through a refrigeration system refrigerant. It uses a refrigeration system and a water carrier to produce ice through a certain device in an energized state.

Parameter:
Power supply: 110V/60Hz
Power: 850W
Ice storage capacity: 100KG
Head size: 565*590*570mm
Ice bucket size: 585*830*998mm
Number of ice bars: 156
Refrigerant: R410A
Cooling method: air cooling

Ice making process:
Through the inlet valve, the water automatically enters a water storage tank, and then pumped through the pump to the diverter pipe, the diverter pipe will flow water evenly to the evaporator cooled by low temperature liquid refrigerant, the water is cooled to the freezing point, the water cooled to the freezing point will solidified into ice, and the water that is not frozen by the evaporator flows into the water storage tank, through the pump to restart the cycle work.
When the ice reaches the required thickness, it enters the deicing state, and the high-pressure hot gas discharged from the compressor is diverted to the evaporator through the reversing valve, replacing the low-temperature liquid refrigerant. This creates a film of water between the ice cube and the evaporator, which releases the ice from the evaporator and allows it to fall freely by gravity into the storage tank below.

Item included(220548):
Techtongda 250KG Ice maker 110V
