Hero image 0 of Condenser Fan Motor, 1/3 hp ORM5458B, 0 of 1

Visit the Century Store

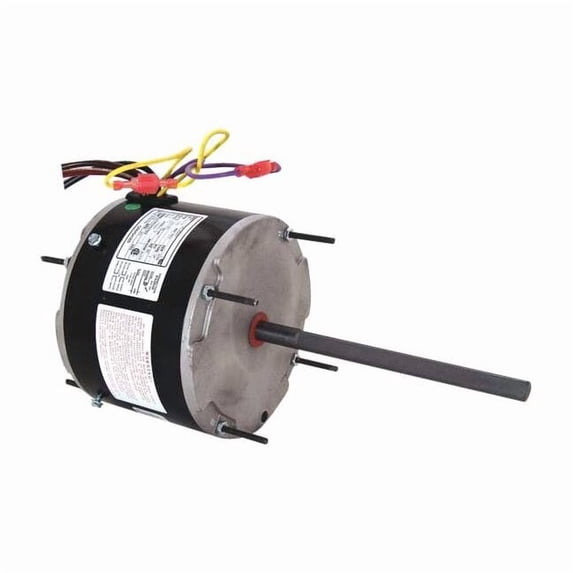

Condenser Fan Motor, 1/3 hp ORM5458B

(No ratings yet)

Key item features

Motor Performance: This single-phase condenser fan motor delivers 1/3 hp with a nameplate RPM of 1,075 and a single speed, drawing 2.0 A full load amps.
Electrical Specifications: Operating at 208-230V AC and 60 Hz, it provides an output of 250 W, and is usable at 208V but not at 200V.
Durable Construction: Featuring a totally enclosed air-over enclosure design and Class B insulation, it includes auto thermal protection and a motor service factor of 1.
Mounting Versatility: Designed for all-angle mounting, this motor comes with a belly band for secure installation and offers CW/CCW shaft rotation.
Compact Dimensions: The motor has a height of 7.400 inches, a length of 14.100 inches, and a width of 7.200 inches, fitting a 48 frame.
Safety Standards: It meets industry standards, being CSA Certified and UL Recognized, ensuring reliable and safe operation.
Temperature Resilience: Capable of operating in environments with a maximum ambient temperature of 60 degrees Celsius.

Generated by AI

Specs

Horsepower
0.17 HP
Electric motor type
AC Motor
Electrical phase
Single Phase
Volts
230 V
Maximum motor speed
1075 rpm
Amps
2 Amps

Current price is Now $105.00

You save $33.00

was $138.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives by Mon, May 18

Sold and shipped by UR SUPPLY DIRECT

Report an issue with this seller

Free 30-day returns

More seller options (1)

Starting from $138.00

About this item

Product details

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3458, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over

All Angle Mounting, Energy Effic
Standards CSA Certified, UL Recognized
Includes Belly Band
Height 7.400
Length 14.100
Phase Single
Voltage 208-230V AC
Width 7.200
