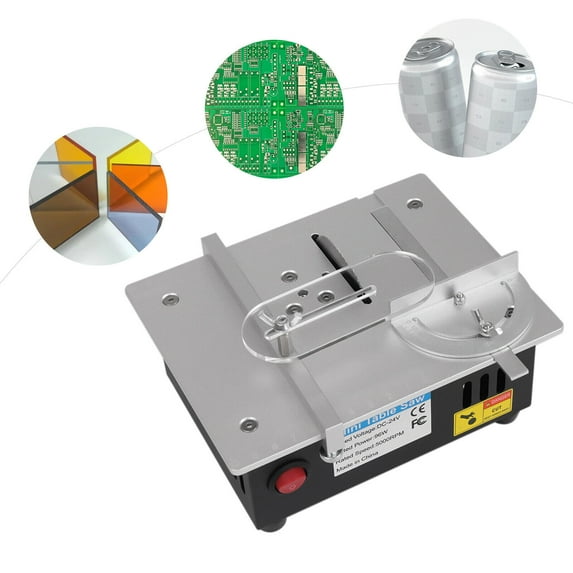

Mini Table Saw,110-220V 96W 5000RPM S3 Precise Bench Saw,0.1-15mm/0.04-0.59in Liftable Saw Blade,7-speed Multifunction Dust-free Cutter for Hobby Woodworking DIY Handmade,18*14*8cm/7.1*5.5*3.2in
Key item features
✅【Precise Scales &Dust-free Cutting &Square Slot】The table top and the pushers have clear marks so that you can cut accurately And the scales are engraved so they are hard-wearing and resistant to color loss. The transparent stopper does not obstruct the view of the blade, making the cut more precise. &It can be connected to the vacuum cleaner via the vacuum hose to remove dust directly when cutting. &The upgraded square slot structure makes it easier to remove stuck sliders, avoiding the problem of the T-slot causing the slider and panel to be scrapped due to a stuck slider.
✅【Powerful Motor &Multifunctional Saw Blades】It uses a reinforced 775 all copper motor to provide it with 5000 RPM and a powerful 96 watts. The low heat generation and low noise pure copper motor. &The HSS saw blade is used to cut thin and short materials, alloy hacksaw blade to cut thick and long materials, diamond saw blade to cut PCB fiberglass board and copper clad plate, and resin grinding wheel blade to cut iron and stainless steel.
✅【One-piece Design &Exceptional Craftsmanship】The integrated design of the lift, power, and spindle. The 3.3 lb net weight and 7.1*5.5*3.2 inch size allow you to carry it easily. &The safety stop above the saw blade made of transparent acrylic prevents fingers from accidentally touching the blade. The panel, backrest and angle ruler of this mini table saw are made of high-quality aluminum alloy, while the housing is made of high-quality iron. The superb cutting, bending, welding, and spraying processes create a smooth, hard-wearing, and robust surface for the machine.
✅【Details】Anti-slip Feet: The four anti-slip feet on the bottom prevent slipping and scratching. Multiple Heats Sinks: The multiple heat sinks allow for timely heat dissipation without damage even after long periods of use. Chip Discharge Port: The enlarged chip discharge port facilitates the timely discharge of wood chips etc. for easy cleaning. Backrest: The backrest facilitates the fixing of objects for precise cutting. Angle Pusher: The angle pusher with a clear scale makes it easy to cut at different angles and makes operation easier and more flexible. One-touch Switch: The simple one-touch switch design makes it easy to switch on and off, even for novices.
Specs
- Volts220 V
- Maximum speed5000 rpm
How do you want your item?
About this item
Product details
It is only suitable for cutting small parts for DIY handicraft, interest development and creative research and development, not a professional woodworking tool.
Description
Using a large table saw to cut small objects is not only inefficient but also dangerous. Here is a mini table saw designed for small objects that allow you to make fine and safe cuts with ease. Even woodworking enthusiasts can enjoy the pleasure of crafting.
Application
It is suitable for cutting PCBs, small sticks, acrylics, copper tubes, veneers, and aluminum alloys in model making, craft workshops, craft classes, etc. It is suitable for saw blades with a diameter of 63mm/2.48in, a bore of 16mm/0.62in, and a thickness of up to 1.5mm/0.59in.
Specification
Model: S3
Rated Voltage: DC24V-4A
Voltage: 110-220V
Rated Power: 96W
Rated Speed: 5000RPM
Motor Type: 775 Motor
Saw Blade Lift Range: 0.1-15mm/0.04-0.59in
Material Stopper: Acrylic
Panel/Backrest/Angle Ruler Material: Aluminium Alloy
Process: Engraving, Bending, Welding, Plastic Spraying
Applicable Saw Blade: Diameter ≤ 63mm/2.48in, Bore ≤ 16mm/0.62in, Thickness ≤ 1.5mm/0.59in
Color: Black
Gross Weight: 1.9kg/4.18lbs
Net Weight: 1.5kg/3.3lbs
Package Size: 29*10*17cm/11.41*3.93*6.69in
Product Size: 18*14*8cm/7.1*5.5*3.2in
How to Replace the Saw Blade
Loosen the 4 screws at the corners, remove the table and invert it.
Use a small spanner to insert the shaft stop hole and then use a large spanner to loosen the screws.
Install the saw blade and tighten the pressure plate. The main saw teeth must not be fitted backward.
Cover the panel and tighten the screws to complete the installation.
Package Included
1*Mini Table Saw
1*7-speed Adjustable Power Supply
1*HSS Saw Blade
1*Alloy Steel Blade
1*Diamond Saw Blade
1*Resin Grinding Wheel Blade
1*Suction Hose
1*Angular Push Ruler
1*Backrest
1*Safety Stopper
1*Brush
All Accessories Needed for Installation
