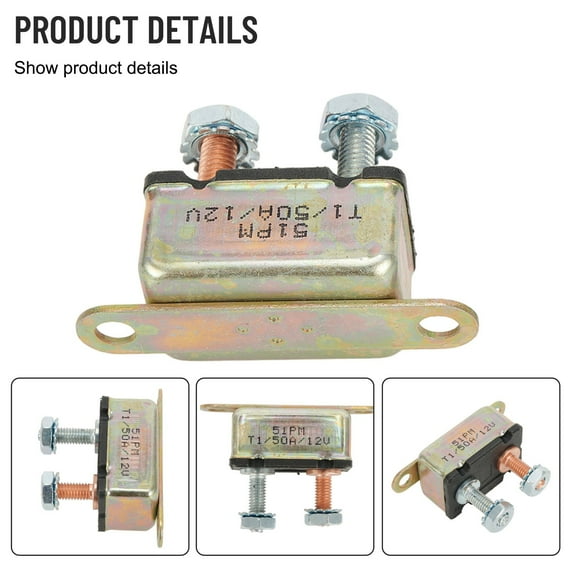

12V 50A Auto Automatic Fuse Reset Circuit Breaker Copper Stud Bolt

Feature :

12V 30A/40A/50A Stud Type Circuit Breaker

Battery chargers, trucks, buses, RVs, trolling motors, etc

SAE J553;SAE J1171;UL1500"

Voltage 12V

Rated Current30A/40A/50A(For choose )

Mounting Parallel (Lengthwise) Mounting Bracket

Reset Type T1, Auto Reset

Operating Temperature -40ºC (-40ºF) to 85ºC (185ºF)

Interrupt Capacity 2.5kA @ 12Vdc

Dimension 1.248"x0.693"x0.8" inch

Regulatory Sepcification ：SAE J553; SAE J1171; UL1500

Termination 10-32 thread

Storage Temperature -40ºC (-40ºF) to 125ºC (260ºF)

Fitment = YES

Package Included :

1 Piece Circuit Breaker

2 Pieces Screw Nuts

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
