8 Channel Picture-In-Picture Video Processor With Audio Support

This advanced picture-in-picture processor provides users with a cost-effective solution of combining 8 video audio inputs together into different style of split-screen views for one screen display.

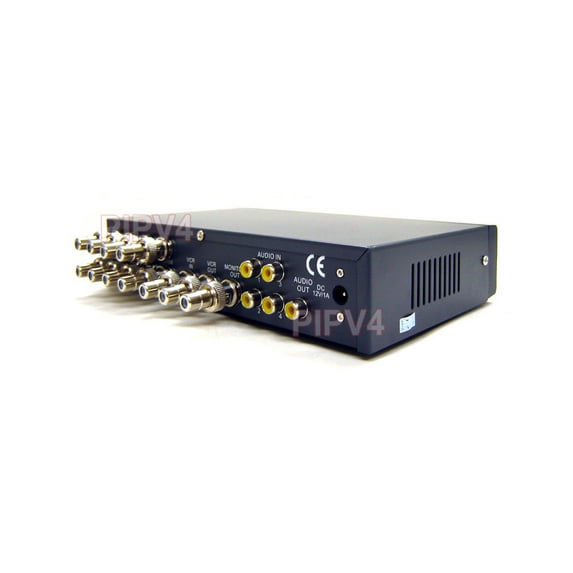

This PIP unit supports total 8 RCA/BNC video inputs and 4 audio inputs.

2 composite BNC/RCA video outputs with 1 audio output are available for displaying on two video monitors, or one for a monitor with the other for a surveillance VCR or DVR.

8 Analog Video Inputs
Unit is built with 8 analog RCA/BNC video inputs with 2 BNC/RCA outputs. It can also accommodate RCA video inputs and output through using BNC to RCA adapters. (not all included).

All video and audio inputs and outputs are synchronized accurately for smooth and real time display.

Support all analog video devices such as such as CCTV surveillance camera, DVR, DVD players, camcorders, satellite receiver or other video systems.

Audio Support
This quad PIP video processor also supports audio inputs and output. There are total of 4 RCA audio inputs with 1 RCA audio output so each video input has its audio input channel to be hooked up with.

Real-Time Split Screen Modes
All video channels can be presented in 16 different modes such as 8-channel split, 4-channel quad screen, 3-channel PIP, 2-channel PIP, 1-channel PIP, single channel full screen, and auto sequential channel switching mode.

Time/Date Stamp Support
This device has a date and time stamp generator built in. Users can choose to show date, current time, channel title on video channels for display and recording sessions.

The date/time stamp can also be turned off manually from the OSD system menu.

Advanced Motion Detection
Motion detection function is available for all 4 channels with adjustable 7-level sensitivity setup from on-screen system menu.

Alarm Support
This unit supports audible alarms for video loss or motion event. The alarm buzzer can be manually turned on or off upon discretion.

Product Features:

• A cost-effective solution of combining 8 video audio inputs together into different style of split-screen views for one screen display for preview, live monitoring or video recording.
• 8 analog composite RCA/BNC video inputs with 4 audio inputs.
• Each video input has its own associated audio input channel.
  2 composite BNC/RCA video outputs with 1 audio output are available for displaying on two video monitors, or one for a monitor with the other for a surveillance VCR or DVR.
• Easy and fast switching between video/audio inputs, split-screen modes by using IR remote control or push buttons on the front panel.
• Supports total 18 screen modes.
• Supports image freeze control, enabling video frames to be paused or captured for extended period of time.
• Provides zoom function from quad to full screen picture.
  Supports border line On/Off function for use in split screen modes.
• Supports time/date stamp for display and video recording.
• Supports auto sequential channel switching function with adjustable dwelling time of 1 to 99 seconds.
• Supports video loss alarm and motion movement alarm.
  Supports programmable motion detection area and sensitivity levels for each camera/input.
• Configurable video loss detection and video motion detect setup with buzzer alert.
• Built-in alarm buzzer can be manually enabled for motion detection and video signal loss.
• Individual color adjustment provided for each video input channel for brightness, contrast, hue, saturation and sharpness control.
• Easy on-screen OSD menu setup.
• Supports all NTSC and PAL input systems with selectable NTSC or PAL video output.
