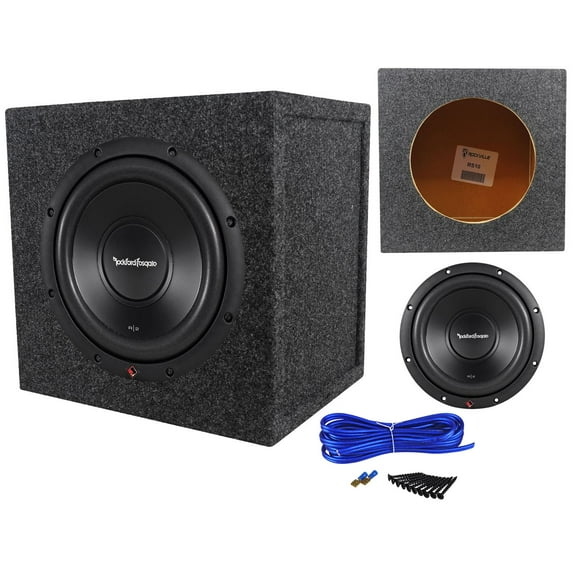

Rockford Fosgate R2D2-10 10" 500 Watt Dual 2 Ohm Car Subwoofer+Sub Enclosure Box
Key item features
Package Includes:
(1) Rockford Fosgate Prime 10" Subwoofer
(1) Rockville RS10 Single Sub Sealed Enclosure
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Features for Rockford Fosgate Sub R2D2-10:
Rockford Fosgate R2D2-10 Prime 10" 500 Watt
Size: 10 inches
Peak Power: 500 Watts
RMS Power: 250 Watts
Nominal Impedance: Dual 2-Ohm
12 AWG compression terminals
Anodized aluminum voice coil former
Integrated PVC trim ring
Linear spider with embedded 16 AWG tinsel leads
Mica injected polypropylene cone
Optimized for both sealed and vented enclosures
StampCast basket with integrated spider venting
Cutout Diameter: 9.125 inches / (232 mm)
Mounting Depth: 4.319 inches / (109.7 mm)
Voice Coil Diameter: 2" / (51 mm)
Magnet Weight: 43 oz / (1.22 kg.)
Speaker Connector: Dual 12 AWG compression
Woofer Displacement: 0.039 cu.ft / (1.1 Liters)
Woofer Displacement: 0.101 cu.ft / (2.85 Liters)
Shipping Weight: 8.8 Lbs / (3.99 kg)
Fs (Hz): 34.6
Re (Ohms): 3.84
Le (mH): 3.9
Qms: 6.93
Qes: 0.50
Qts: 0.47
Vas (Liters): 39
Sd (cm2): 339.8
SPL (dB @ 1w/1m): 86.9
Xmax (mm): 6.5
Sealed - Enclosure
Vb: 0.59 cu.ft
F3: 57.5 Hz
Qtc: 0.75
Height: 15.75 inches
Width: 17.5 inches
Depth: 6.25 inches
Speaker Cutout: 9.125 inches
Speaker Depth: 4.319 inches
Vd: 0.101 cu.ft
Vented - Enclosure
Vb: 1.40 cu.ft
Fb: 43 Hz
F3: 37.1 Hz
Height: 14 inches
Width: 17 inches
Depth: 15.25 inches
Np: 1 port
Dp: 4 inches diameter
Lp: 13.1 inches long
Speaker Cutout: 9.125 inches
Speaker Depth: 6.319 inches
Vd: 0.101 cu.ft
Vp: 0.095 cu.ft
Recommended Enclosure Type: ported or sealed
Minimum Sealed Box Volume: 0.50 cubic feet
Optimum Sealed Box Volume: 0.75 cubic feet
Maximum Sealed Box Volume: 0.85 cubic feet
Minimum Ported Box Volume: 0.70 cubic feet
Top-Mount Depth: 4.57"
Cutout Diameter: 9.13"
Features of Rockville Enclosure RS10:
Rockville RS10 Single 10" Sealed Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The BestLevel of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
High quality GOLD spring loaded terminals
Designed, tested, and engineered to work with most of today’s popular woofers.These enclosures are built with the quality additives needed to maximize theperformance of any sound system.
Enclosure Measurements:
Type of Enclosure: Sealed
Enclosure Sub Size: Single 10"
Dimensions in Inches: 10.5" L x 13.5" W x 13.5 H"
Top and Bottom Depth: 10.5"
Mounting Depth: up to 9" (enough depth for any sub on the market)
Gross Volume Per Sub (Measurement for the outer dimensions of the box): 1.0Cubic Feet
Net Volume Per Sub (Measurement for the outer dimensions of the box less thethickness of the wood): 0.75 Cubic Feet
Complete Single Subwoofer Enclosure Installation Kit!
This accessory package includes everything you need to install one subwooferinto an enclosure, and wire to connect the enclosure to your amplifier. Thispackage is a top of the line accessory package which we put together and tested.
TThe drywall wood screws were hand selected by our installation experts becausethey drill into the enclosure very cleanly, without chipping the enclosure. Thespeaker wire is 14 gauge. This is way better than using 16 gauge.
