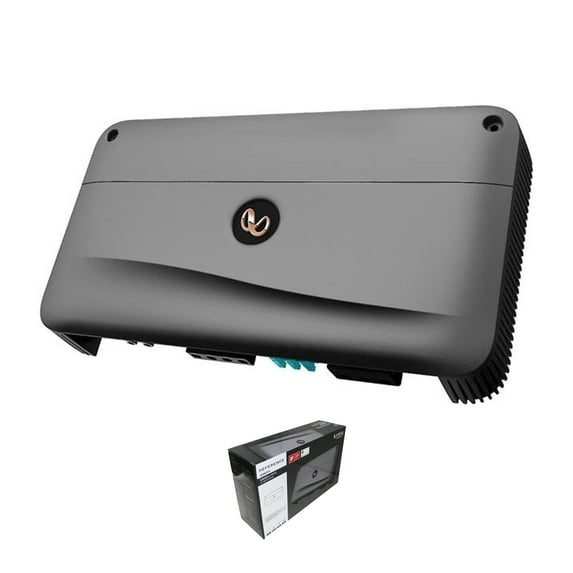

Infinity Reference 10001A 1000W RMS Class-D Monoblock Subwoofer Car Amplifier
Key item features
- mono subwoofer amplifier
- 600 watts RMS x 1 at 4 ohms
- 1000 watts RMS x 1 at 2 ohms
- 2000 total watts RMS x 1 at 4 ohms when strapped to a second Reference 10001A
- Class D amp technology
- variable low-pass filter (32-320 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- phase switch (0, 180 degrees)
- wired remote bass control module included
- preamp and speaker-level inputs
- bare wire to RCA adapters included for high-level input
- preamp outputs
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 35A x 3
- dimensions: 12-5/8"W x 2-1/4"H x 7-3/4"D
- Mono subwoofer car amplifier
- 600 watts RMS x 1 at 4 ohms
- 1000 watts RMS x 1 at 2 ohms
- Class D amp technology
- Frequency response: 10–320Hz
- Variable low-pass filter (32–320Hz, 12dB/octave)
- Variable bass boost (0–12dB at 45Hz)
- Phase switch (0, 180 degrees)
- Wired remote level control included
- Preamp inputs and outputs
- Speaker-level inputs (speaker wire-to-RCA
- adapters included)
- 4-gauge power and ground leads recommended —
- wiring and hardware not included with amplifier
- Fuse rating: 35A x 3
- W x H x D = 320mm x 55.5mm x 180mm
- W x H x D = 12-5/8" x 2-3/16" x 7-1/8"
- UPC: 050667375485
- Weight: 10
Specs
- BrandInfinity
- Rms power rating1000 W
- Channels1
- Impedance4 ohm
- FeaturesCompact
- Peak audio power handling2000 W
- Free shipping
Free 30-day returns
(Only one option can be selected at a time)
How do you want your item?
About this item
Product details
BRAND NEW
INFINITY REFERENCE 10001A
1000W RMS Class-D Monoblock Subwoofer Car Amplifier
Key Features:
Compact size
The Infinity Reference 10001A amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
High and low-level input
Speaker-level and low-level inputs allow the Reference 10001A to integrate with both aftermarket and factory car stereo systems.
Variable crossover and bass boost
Unlike many amplifiers available at similar prices, the Reference 10001A features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance.
Low noise and distortion
The Reference 10001A has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line-induced radiated engine noise.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Full on-board protection
On-board circuitry protects the Reference 10001A from shorts, high-temperature, overvoltage, and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Phase Switch
This switch changes the input phase to inverted or noninverted.
RBC wired remote
The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.
Specifications:
- 600 watts RMS x 1 at 4 ohms (1000 watts RMS x 1 at 2 ohms)
- Class D amp technology
- Frequency Response: 10-320 Hz
- Variable low-pass filter (32-320 Hz, 12 dB/octave)
- Variable bass boost (0-12dB at 45Hz)
- Phase Switch (0, 180 degrees)
- Wired remote level control included
- Preamp inputs and outputs
- Speaker-level inputs (speaker wire-to-RCA adapters included)
- 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
- Fuse rating: 35A x 3
- WxHxD=320mm x 55.5mm x 180mm
- WxHxD=12-5/8” x 2-3/16" x 7-1/8”
- 1000w RMS / 2000W MAX
- mono subwoofer amplifier
- 600 watts RMS x 1 at 4 ohms
- 1000 watts RMS x 1 at 2 ohms
- 2000 total watts RMS x 1 at 4 ohms when strapped to a second Reference 10001A
- Class D amp technology
- variable low-pass filter (32-320 Hz, 12 dB/octave)
- variable bass boost (0-12 dB at 45 Hz)
- phase switch (0, 180 degrees)
- wired remote bass control module included
- preamp and speaker-level inputs
- bare wire to RCA adapters included for high-level input
- preamp outputs
- wiring and hardware not included with amplifier
- 4-gauge power and ground leads recommended
- fuse rating: 35A x 3
- dimensions: 12-5/8"W x 2-1/4"H x 7-3/4"D
- Mono subwoofer car amplifier
- 600 watts RMS x 1 at 4 ohms
- 1000 watts RMS x 1 at 2 ohms
- Class D amp technology
- Frequency response: 10–320Hz
- Variable low-pass filter (32–320Hz, 12dB/octave)
- Variable bass boost (0–12dB at 45Hz)
- Phase switch (0, 180 degrees)
- Wired remote level control included
- Preamp inputs and outputs
- Speaker-level inputs (speaker wire-to-RCA
- adapters included)
- 4-gauge power and ground leads recommended —
- wiring and hardware not included with amplifier
- Fuse rating: 35A x 3
- W x H x D = 320mm x 55.5mm x 180mm
- W x H x D = 12-5/8" x 2-3/16" x 7-1/8"
- UPC: 050667375485
- Weight: 10
Specifications
Brand
Rms power rating
Channels
Impedance
Warranty
Warranty information
