Electronic Weighing Scales Load Cell Sensor, 0-100kg/260lb Parallel Beam Load Cell Sensor
Electronic Weighing Scales Load Cell Sensor, 0-100kg/260lb Parallel Beam Load Cell Sensor

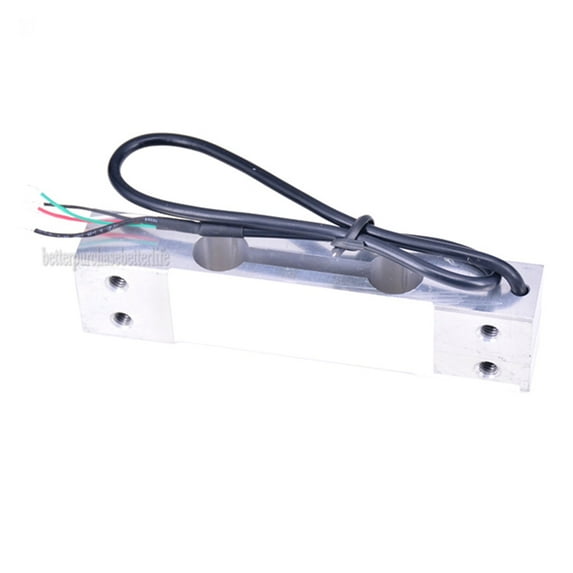

Hero image 0 of Electronic Weighing Scales Load Cell Sensor, 0-100kg/260lb Parallel Beam Load Cell Sensor, 0 of 6
Eugene Color

Electronic Weighing Scales Load Cell Sensor, 0-100kg/260lb Parallel Beam Load Cell Sensor

(No ratings yet)

Key item features

  • Parameter:
  • rated Load (kg): 100 kg;
  • precision: 0.02;
  • Composition Error (%FS): 0.03;
  • Rated Output (mv/v): 2 +/-0.1;
  • non-linearity (% FS): 0.03;
  • hysteresis (%FS): 0.03;
  • Repeatability: (%FS): 0.01;
  • Creep (%FS/30 min): 0.02;
  • zero Balance (%FS): +/-1;
  • Input Resistance (ohms): 405 +/-6;
  • Output Resistance (ohms): 350 +/-3;
  • Insulation Resistance (Mohm) 5000 (100VDC);
  • Excitation Voltage (V): 9-12VDC;
  • temp compensation Range(C):-10-+40;
  • use Temp. Range(C):-35-+65;
  • temp. Effect on Zero (%FS/10C): 0.03;
  • temp. Effect on Range (%FS/10C): 0.03;
  • Safe overload (%FS): 120;
  • Ultimate Overload (%FS): 150;
  • Maintain Grade: IP65;
  • Cable: Shielding Cable (diameter: 5)
  • Wire Schematic Diagram:
  • red: + (input);
  • white:-(output);
  • black:-(input);
  • green: + (output).
  • our available range: 0-5 KG; 10KG; 20KG; 50KG; 100KG; 120KG; 200KG; 350KG; 500KG.
  • please have a look at our shop.
Current price is $36.74
