EZBR-0214- 2.4GHz Point To Point Bridge System

The EZ-Bridge-LT is a high power outdoor 250mW wireless bridge system operating in the 2.4GHz unlicensed frequency spectrum providing real world thruput up to 15 Mb/sec. It complies with the 802.11b and g standards to insure interoperability. The EZ-Bridge-LT creates a transparent wireless bridge between two networks up to 3 miles apart with good line of sight. It supports multiple MAC addresses and DHCP across the wireless link. It is the perfect plug and play solution for connecting the networks in two or more buildings, internet access sharing, remote video surveillance or remote network access. Multiple EZ-Bridge-LT units can be connected in a mesh configuration to allow interconnecting more than two sites.

With its password verification, MAC address authentication, SSID suppression and advanced WPA encryption, the system provides the best wireless data security. Installation is a snap because of the plug and play features which have been built into the system. Just install the antennas and plug in the power supplies. The units will automatically find their peer and create a secure wireless network link. If changes to the pre-configured settings are desired, they can be easily done thru the built-in web interface from any point on either side of the network. There are no drivers or software that needs to be loaded to the computer.

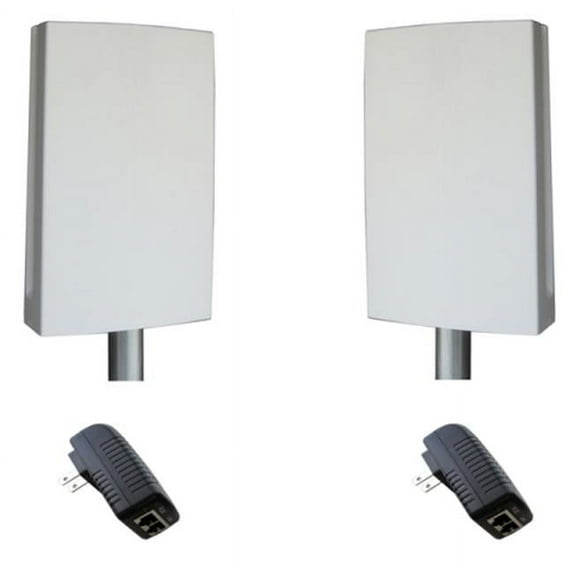

The EZ-Bridge-LT comes complete with all the electronics that are needed for a point to point wireless network bridge installation; including 2 powerful 14dBi antennas with built-in 802.11bg high power electronics, Bracket Kits which accommodate pole or wall mounting and Cat5e rated POE (Power Over Ethernet) power inserters. Customer needs to supply CAT5 cabling between the power inserter and the antenna.

• EZ-Bridge LT2+ Point to Point Bridge System
• Plug and Play 2.4GHz
• Standards - 802.11bg/n
• Outdoor - 250mW.
• POE Bundles, Pole/Wall Mount Brackets.
• Speed - 100Mbps
