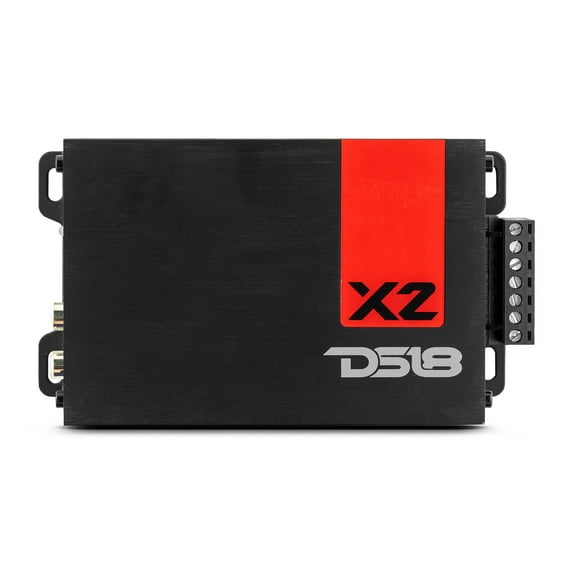

DS18 X2 2-Channel 1140W Peak Class-D Ultra-Compact Full-Range Car Amplifier

Overview

Amazing power and an amazing small footprint is what the DS18 X2 amp is all about. This tiny amp packs a powerful punch all while fitting in the palm of your hand! It is a perfect selection for audiophiles cramming audio in tight spaces. For example, you can fit multiple X series amps in most motorcycle fairings powering an entire system all while safely tucked away. Small enough to fit in your hand but powerful enough to power four high powered speakers, this little powerhouse pumps out 140 watts RMS x2 at 4 ohms and 230 x2 at 2 ohms which is enough to get super loud sound with great clarity.

Features

• Huge power for such a small size giving it high versatility in applications in which it can be used.


• Fits in most tight spaces and a high power per size ratio.


• Two and four ohm stable pumping out 140 watts RMS at 4 ohms per channel or 230 watts RMS at 2 ohms per channel.


• Easily adjustable filters making tuning for mids or tweeters easy.

Specifications

• Class: Class-D


• Amplifier Type: Micro Stereo Full Range Amp


• Channels: 2


• Total watts Peak: 1140W


• RMS Power 4 Ohm: 140W X 1Ch


• RMS Power 2 Ohm: 230W X 1Ch


• RMS Power 1 Ohm: -


• RMS Power 4 Ohm Bridge: 300 X 1Ch


• Frequency Response: 20Hz-20KHz


• Signal/Noise Ratio: >90 Db


• Efficiency 4 Ohm: >80%


• Damping Factor: >201


• THD %: <0.2%


• Low Level Input Range: 0.2-5V


• Selectable X-Over: LPF/FLAT/HPF


• X-Over Filter Range: 40Hz-400Hz


• Minimum Impedance: 2 Ohm


• Led Indicator: Power/Protection


• Power Input Size: 12Ga


• Fuse Rating: 40A


• Thermal Protection: Yes


• Over-Load Protection: Yes


• Dc Output Protection: Yes


• Short Circuit Output Protection voltage Input Protection: Yes


• Voltage Input Protection: Yes


• Dimensions LxWxH Inches: 5.54 X 3.24 X 1.37"


• Heatsink Length: 4.75"


• Compact Size To Easy Installation For Any Applications: Yes


• Stable/Reliable Four Layers Traces PCB Design: Yes


• Surface Mount Component Technology: Yes


• Audio Precision Quality Control Verification: Yes


• Configuration 2Ch/4Ch Input Selector: No
