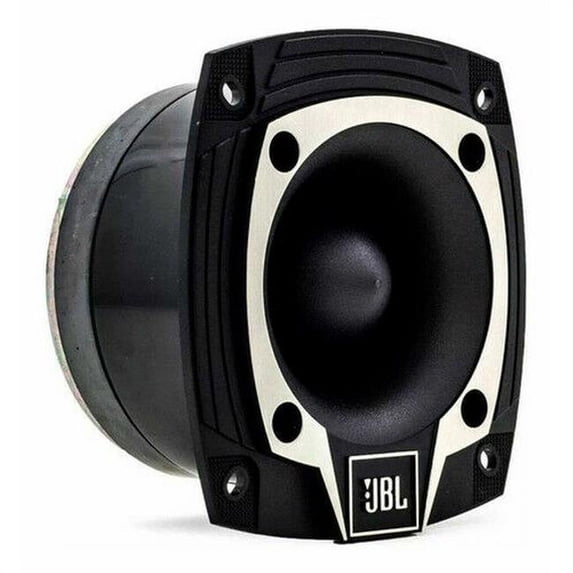

100 watt RMS Super Tweeter

It can be used in PA systems, automotive mini trios and in sound reinforcement systems.

• Nominal Impedance: 8 Ohms
• Nominal Power: 100 Watts RMS
• PEAK: 200 Watts
• Sensitivity 1W @ 1 cu m: 106 dB SPL
• Frequency Response: @ -10 dB - 2500Hz to 20KHz
• Horn dispersion (H x V): 40 x 40
• Diaphragm Material: Phenolic
• Coil Diameter: 46 / 1.81 mm
• Freq. Recommended minimum cut: 5 KHz
• Magnet Material: Barium Ferrite
• Base and cover material: Polycarbonate
• Finish: Machined-Crystal
• Coil wire material: Copper
• Coil Shape Material: Polymide
