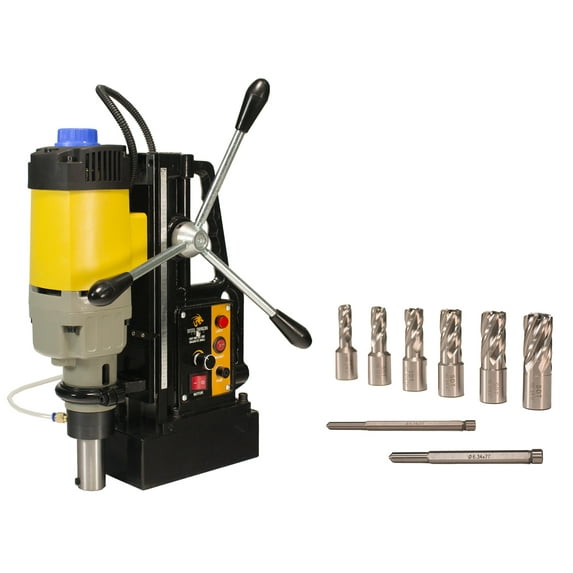

Steel Dragon Tools® MD50 Magnetic Drill Press with HSS Annular Cutters

Steel Dragon Tools® MD50 Magnetic Drill Press with 7pc 1in. Small HSS Annular Cutter Kit This package includes the Steel Dragon Tools MD50 Magnetic Drill Press and the Steel Dragon Tools 7-piece, small diameter, 1-inch cut depth high-speed steel annular cutter kit. The Steel Dragon Tools MD50 Magnetic Drill Press will accept up to 2-inch, high-speed steel annular cutters with a maximum boring diameter of 2 in. (50 mm). This magnetic drill press will attach directly to the metal drilling surface with a powerful electromagnet. The electromagnet has 2,900 lbs. of max force and ensures the machine will not move during the drilling process. A secured magnetic drill press provides more leverage than a hand drill, allowing the operator to cut even, consistent holes. The magnet also allows the drill to operate upside down. A full line of 1-inch and 2-inch HSS annular cutters by Steel Dragon Tools are available. MD50 Features:

• Suitable for drilling on any metal surface.
• Rack and pinion gear system for exact drilling depth.

MD50 Specifications:

• Motor: High-Speed Series, Induction, 1850 W, 110 V, 60 Hz, 15 A
• Max Magnetic Force: 2,900 lbs. (13,000 N). Thinner metal will result in less force.
• Maximum Boring Diameter: 2 in. (50 mm)
• Maximum Boring Depth: 8-1/2 in.
• Tool Holder: 3/4-inch Weldon Shank
• Spindle Speed: 300 RPM
• Overall Weight: 52 lbs.

Annular Cutter Features:

• SDT annular cutters will drill large holes up to ten times faster than regular drills bits.
• Machine-finish hole with no reaming needed when using lubricant.
• Make overlapping holes, slotting holes, and edge cuts.
• Bit size is etched on each cutter.
• Pilot pin helps locate the center of hole location.
• Pilot pin helps eject slug after drilling is complete.
• During the drilling process, the pilot pin will retract into the cutter allowing lubrication to reduce heat gain in the slug.

Annular Cutter Specifications:

• Kit includes six (6) high-speed steel annular cutters and one (1) pilot pin.
• Bit sizes included: 7/16 in., 1/2 in., 9/16 in., 5/8 in., 11/16 in., and 3/4 in.
• Cutting Depth: 1 in.
• 3/4 in. Weldon Shank
• Pilot Pin: 3/16 in. x 4 in. (4.74 mm x 103 mm)
• Pilot Pin: 1/4 in. x 4 in. (6.34 mm x 103 mm)

This product is designed and manufactured by Steel Dragon Tools®.
