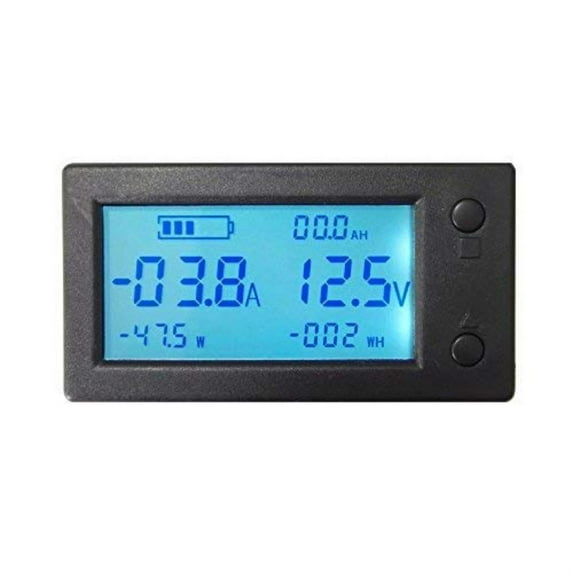

Battery Monitor 6in1 300V 100A State of Charge SOC AH VOLT AMP Charge Discharge

Battery Monitor Voltage Current Capacity Satate of Charge - With Current Sensor
Product Overview
Key Feature
This Battery Monitor is designed to monitor performance most kind of battery
systems with capacities of up to 999 Amp hours.
* Read your battery bank like a fuel gauge.
* Battery Status At A Glance.
* STNFull view LCD screen.
* Combines many functions in one, these information leads to more efficient
use of the battery, which can enhance battery life and reduce the risk of
failure. State of Charge (%),The remaining battery capacity (AH).
Charge and discharge current (A),Voltage (V).
Power (W), Energy (WH/KWH).
* Charging status indicator, looks like a smartphone.
* Come with a Through-hole Current transformer, it doesn't require shunt.
* The current sensor can be placed on the Positive or Negative side of power.
* Reverse polarity protection.
* Doesn't require isolated power, self-powered 5-90V.
* Nondestructive installation, it is very easy to install.
Technical Specification

Power Supply 5~90Vdc
Voltage Range 0~300V
Current Range -100.0A ~+100.0 A
Energy Range 0~999KWH
Power Range 0~999KW
Capacity Range 0-999AH
Resolution 0.1V, 0.1A, 0.1AH, 0.1W, 1WH
Display Type STNFull view LCD screen
Sensor hole dimeter 20mm
Dimensions 79mm*42*22.2mm
Panel Cut-out 72mm*39mm

The auction includes
* 1 ×Battery monitor
* 1 × Current transformer
* 2× 3pin cable
* 1× English operation manual
