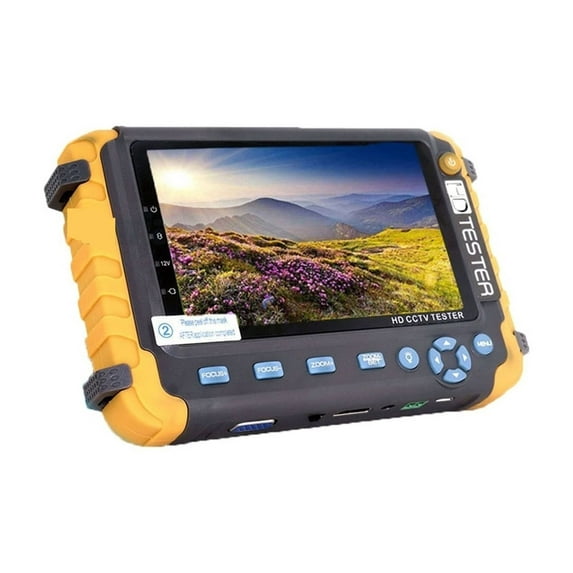

Hero image 0 of IV8W/8C/IV5 TFT LCD HD 8MP TVI AHD CVI CVBS In One CCTV Tester Analog Security Camera Tester Monitor Wrist Design Test Tool, 0 of 5
IV8W/8C/IV5 TFT LCD HD 8MP TVI AHD CVI CVBS In One CCTV Tester Analog Security Camera Tester Monitor Wrist Design Test Tool
(No ratings yet)
IV8W/8C/IV5 TFT LCD HD 8MP TVI AHD CVI CVBS In One CCTV Tester Analog Security Camera Tester Monitor Wrist Design Test ToolIV8W 8C IV5 TFT LCD HD 8MP TVI AHD CVI CVBS In One CCTV Tester Analog Security Camera Tester Monitor Wrist Design Test ToolIV8W 8C IV5 TFT LCD HD 8MP TVI AHD CVI CVBS In One CCTV Tester Analog Security Camera Tester Monitor Wrist Design Test ToolIV8W 8C IV5 TFT LCD HD 8MP TVI AHD CVI CVBS In One CCTV Tester Analog Security Camera Tester Monitor Wrist Design Test Tool
Size:A
Actual Color:8W with HDMI VGA
IV5 tester
8C no HDMI VGA
selected, 8W with HDMI VGA
Key item features
- IV8W------5inch tester+8MP AHD+8MP CVI+8MP TVI(with and VGA)
- IV8C------5inch tester+8MP AHD+8MP CVI+8MP TVI(without and VGA)
- IV5------5inch tester+8MP AHD+8MP CVI+8MP TVI(without and VGA)
- Product overview
- The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
- Specifications:
- Model IV8W
- LCDscreen 5.0inchTFT-LCD,800(RGB)x480resolution
- Videotest NTSC/PAL(Autoadapt)
- LCDadjustment Brightness,Contrast,Saturationadjustable
- PTZController SupportRS485
- UTPCableTest
- DisplayUTPcableconnectionstatuscabletypeand
- thesequenceofwiresaswellasreadthenumberofthetestbox
- DC12Vpoweroutput
- OutputDC12V1Apowerforcamera
- inputtest
- 1channelsignalinput
- CoaxialHDtest
- TVItest
- 1channelTVIinputBNCinterface
- support8MP
- CVITest
- 1channelTVIinputBNCinterface
- support8MP
- AHDTest
- 1channelAHDinputBNCinterface,
- supportAHD2.0version,8MP
- POWER
- PowerAdapter
- DC5V(1.5A)
- Battery Built-in186502600mAbatteryX2,
- Aftercharging3-4hour,workingtimelasts11hoursGeneral
- Language English
- WorkingHumidity 30%-90%
- Dimension 194mmx112mmx48mm/540g
- Product Funtions
- Enhanced network cable testing
- By UTP CABLE TEST port on the meter, you can test the connection of network cable.
- VGA/ input
- Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
- TVI camera test
- HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
Specs
BrandEugene Color
Color8W with HDMI VGA
Current price is USD$185.28
Price when purchased online
- Free shipping
Free 30-day returns
Walmart Accident Plan by Allstate
(Only one option can be selected at a time)
How do you want your item?
Ships to
Arrives between Jun 5 - Jun 11
|
Sold and shipped by VigorMetric
3.0526315789473686 stars out of 5, based on 19 seller reviews(3.1)19 seller reviews
Free 30-day returns
About this item
Product details
Vedio monitor tester, High-resolution 5.0 inches 800 (RGB) x480 wide viewing angle display, Viewing angle larger, more intuitive and easy to display the camera image quality.
Video monitor tester built-in Pelco-D / P PTZ control protocol, etc. , through its own RS485 interface, the user can control the PTZ up, down, left, right rotation, and adjust one machine zoom, aperture size.
Multi-format video OUT port image generator, sending a variety of standard (e.g. PAL, NTSC) color graphics section
Power the camera with DC12V (1A) power output from the tester. It is helpful for demo and testing when the power supply is not available
Test the input from pickup devices. Connect the tester and pickup device with the cable.
- IV8W------5inch tester+8MP AHD+8MP CVI+8MP TVI(with and VGA)
- IV8C------5inch tester+8MP AHD+8MP CVI+8MP TVI(without and VGA)
- IV5------5inch tester+8MP AHD+8MP CVI+8MP TVI(without and VGA)
- Product overview
- The HD coaxial tester is developed for the on-site installation and maintenance of HD coaxial camera, having TVI, AHD,CVI. It also provides many useful functions, such as video display, PTZ control, DC12V output power, test, image generator, VGA video signal input, 1.0 signal input, RS485 data searching, cable testing, LED lamp etc.
- Specifications:
- Model IV8W
- LCDscreen 5.0inchTFT-LCD,800(RGB)x480resolution
- Videotest NTSC/PAL(Autoadapt)
- LCDadjustment Brightness,Contrast,Saturationadjustable
- PTZController SupportRS485
- UTPCableTest
- DisplayUTPcableconnectionstatuscabletypeand
- thesequenceofwiresaswellasreadthenumberofthetestbox
- DC12Vpoweroutput
- OutputDC12V1Apowerforcamera
- inputtest
- 1channelsignalinput
- CoaxialHDtest
- TVItest
- 1channelTVIinputBNCinterface
- support8MP
- CVITest
- 1channelTVIinputBNCinterface
- support8MP
- AHDTest
- 1channelAHDinputBNCinterface,
- supportAHD2.0version,8MP
- POWER
- PowerAdapter
- DC5V(1.5A)
- Battery Built-in186502600mAbatteryX2,
- Aftercharging3-4hour,workingtimelasts11hoursGeneral
- Language English
- WorkingHumidity 30%-90%
- Dimension 194mmx112mmx48mm/540g
- Product Funtions
- Enhanced network cable testing
- By UTP CABLE TEST port on the meter, you can test the connection of network cable.
- VGA/ input
- Support VGA/ 1.0 video input, once connect VGA/ video, please switch selector to select or VGA mode. The maximum resolution is 1920 x 1440(IV8W ) / 1920X1080 (IV8S)
- TVI camera test
- HD TVI video surveillance testing, support 8MP (IV8W ) / 720p 25, 30, 50,60fps/ 1080p 25,30fps (IV8S). When TVI signal input, the tester will display HD TVI camera image.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Brand
Eugene Color
Color
8W with HDMI VGA
Assembled product dimensions (l x w x h)
6.30 x 2.36 x 10.24 Inches
Assembled product weight
35.3 oz
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
