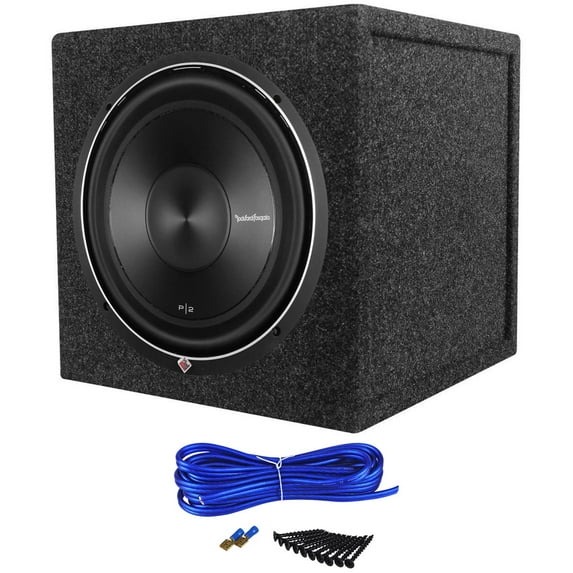

Rockford Fosgate Punch P2D2-12 12" 800w DVC 2 Ohm Car Subwoofer+Sealed Enclosure
Key item features
Package Includes:
(1) Rockford Fosgate Punch 12" Subwoofer
(1) Rockville RS12 Single 12” Sealed Sub Enclosure
10 Drywall Wood Screws (Wood screws are the type of screws; the screws areactually made of metal)
12 Feet of 14 AWG Blue Speaker Wire
2 Spade Terminals
Features for Rockford Sub:
Rockford Fosgate Punch P2D2-12 800w Car Subwoofer
Size: 12 Inches
Nominal Impedance: Dual 2-Ohm
Peak Power: 800 Watt
RMS Power: 400 Watt
Custom 10-AWG nickel plated push terminals
Diamond cut cast aluminum trim ring with optional grille
Dual linear spider with embedded 16 AWG tinsel leads
Extended pole piece and bumped vented backplate
High-temp voice coil with spun-laced Nomex® re-inforcement collar
Kevlar fiber reinforced paper cone
Protective PVC textured magnet cover
StampCast basket with integrated spider venting
Voice Coil Diameter: 2.25" / (57.7 mm)
Magnet Weight: 72.8 oz / 2.06 kg
Speaker Connector: Dual 10 AWG compression
Cutout Diameter: 11.22 in / (285 mm)
Mounting Depth: 6.40 inches / (162.6 mm)
Woofer Displacement: 0.170 cu.ft / (4.8 Liters)
Shipping Weight: 15.6 Lbs / (7.07 kg)
Fs (Hz): 26
Re (Ohms): 3.30
Le (mH): 3.7
Qms: 6.50
Qes: 0.56
Qts: 0.52
Vas (Liters): 81.5
Sd (cm2): 570
SPL (dB @ 1w/1m): 86
Xmax (mm): 13.3
Sealed Enclosure
Vb: 1.02 cu.ft
F3: 43.7 Hz
Qtc: 0.94
Height: 14 inches
Width: 18 inches
Depth: 10 inches
Speaker Cutout: 11.22 inches
Speaker Depth: 6.40 inches
Vd: 0.17 cu.ft
Vented Enclosure
Vb: 1.79 cu.ft
Fb: 40 Hz
F3: 35 Hz
Height: 14 inches
Width: 25 inches
Depth: 12 inches
Np: 1 port
Dp: 4 inch diameter
Lp: 11.8 inch long
Speaker Cutout: 11.22 inches
Speaker Depth: 6.40 inches
Vd: 0.17 cu.ft
Vp: 0.086 cu.ft
Minimum Sealed Box Volume: 0.50 cubic feet
Optimum Sealed Box Volume: 0.75 cubic feet
Maximum Sealed Box Volume: 0.85 cubic feet
Minimum Ported Box Volume: 0.70 cubic feet
Top-Mount Depth: 4.57"
Cutout Diameter: 9.13"
Description Of Rockville Enclosure:
Introducing Rockville Sub Enclosures!
The RS12 single sealed speaker box is made in the USA with Grade “A” ¾” MDFwood. This enclosure is made with precision cutting machinery by industryexperts that have been making these enclosures in the USA for over 20 years. AllRockville enclosures come with a customized enhanced glue that is unmatched byany other manufacturer. That means that the carpet will stay in place and notrip or tear. The ¾” USA MDF is much stronger then any type of import wood. Thiswill keep your box performing at an optimal level by not flexing and distortingyour woofers. Your woofers will thank you! EVERY Rockville enclosure is not onlyglued at all joints but stapled as well. If that wasn’t enough we add a layer ofsilicon to every seam! This makes your Rockville enclosure rock even more!
Features:
Rockville RS12 Single 12" Sealed Subwoofer Enclosure
Proudly Made In The USA, Using Only The Finest Quality Materials - For The BestLevel of Performance From Your Subs!
3/4" USA Heavy Duty MDF Construction
Machine precision cut mounting holes
Top of the line Glue for extra durable adhesion
High quality GOLD spring loaded terminals
Designed, tested, and engineered to work with most of today’s popular woofers.These enclosures are built with the quality additives needed to maximize theperformance of any sound system.
Enclosure Measurements:
Type of Enclosure: Sealed
Enclosure Sub Size: Single 12"
Dimensions in Inches: 13.2" L x 13.2" W x 13.2 H"
