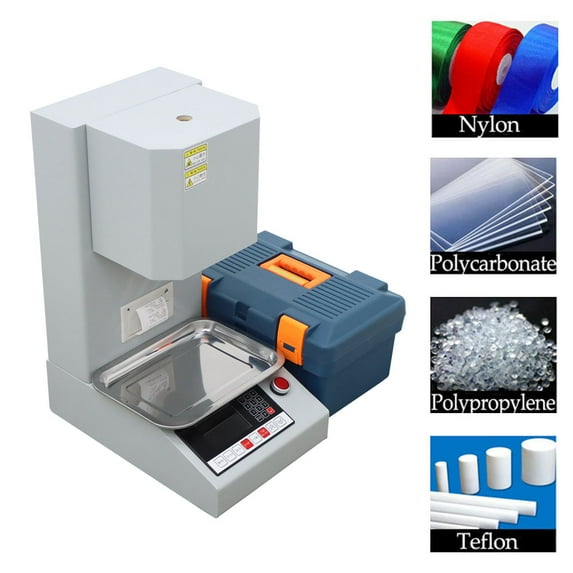

Automatic Melt Flow Index Rate Tester MFR Tester Plastic Polymers MFR Tester Labs Digital Display

Product Overview:
● The Melt Flow Rate (MFR) tester is designed to measure the flow performance of plastic polymers at high temperatures, following the test standards such as GB3682-2000.
● It is ideal for determining the melt flow rate of various polymers including polyethylene, polypropylene, ABS resin, and more, making it essential for production and research in factories, enterprises, and scientific institutions.
The instrument complies with the provisions of GB/3682-2000;
● ASTM-D1238, D3364; JIS-K7210; ISO1133 standard.
● This instrument is used to measure the melting of various polymers in the state of viscous flow.
● It is suitable for polycarbonate, polyarylene sulfone, and fluoroplastics with high melting temperature. Also suitable for polyethylene, polystyrene, resin and other plastics with lower melting temperature.
● This instrument is only suitable for the determination of the melt flow rate (MFR) of the mass method, and its value can characterize the viscous flow characteristics of the thermoplastic in the molten state.

Product Parameter:
1. Test method: Quality method (MFR) with printing function
2. Temperature range: normal temperature -400℃
3. Display mode: touch screen display
4. Temperature control accuracy: ±0.1℃
5. Timing accuracy: 0.1S
6. Load: can be composed: 1.2kg; 2.16kg; 3.8kg; 5kg; 7.16kg; 10kg
7. Cutting method: automatic and manual
8. Inner diameter of material barrel: 9.550mm±0.025mm
9. Barrel length: 160mm
10. Mould: the material is tungsten carbide
11. Length: 8.000mm±0.025mm
12. Inner diameter: 2.095mm±0.005mm
13. Power: 450W

Matters needing attention:
1. The single power socket must have a ground wire hole and be reliably grounded.
2. In case of abnormal display on the LCD, shut down the machine first, then restart the machine, reset the test temperature, and start the operation.
3. In normal operation, if the furnace temperature is greater than 450 ℃, the software will protect, interrupt the heating and send an alarm.
4. In case of any abnormal phenomenon, such as temperature control and display failure, shut down the machine for maintenance,
5. When cleaning the piston rod, do not scrape it with hard objects.

Item Included: 025374-SunY
110V Automatic Melt Flow Index Rate Tester*1
