10002

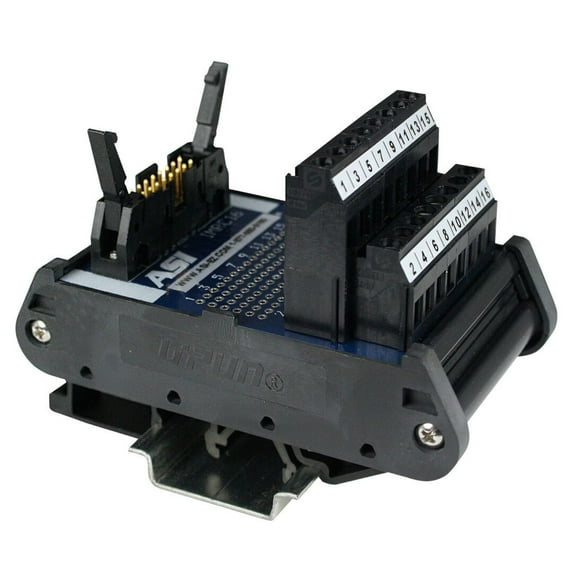

The ASI 10002, Type IMRC16, is a DIN rail mount IDC 16 pin ribbon cable connector to screw terminal block breakout board. This din rail interface module make is easy to transistion from a 16 pin flat ribbon cable connector to two-level screw terminal block connector in a compact module that snaps onto a DIN rail. This 16 pin ribbon cable breakout board is rated 2 Amps at 120 Vac, and the terminal blocks accept 26 to 12 AWG wire. This DIN rail mounted interface module provides an easy transition from a 16 pin ribbon cable to wire. The 16 position ribbon cable connector is equipped with locking latches to securely hold the connector to the module. There are 6 component holes on the board in series between the connector and the terminal block connections. These component holes allow you to easily install components such as resistors, diodes or MOVs in the circuit if required.
