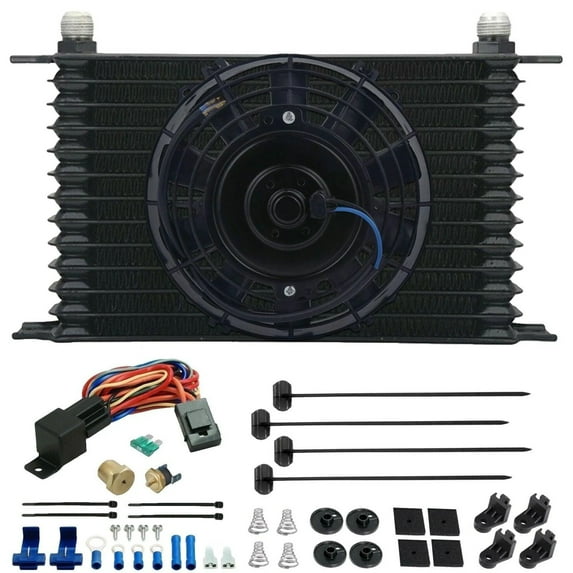

13 Row Transmission Oil Cooler Electric Fan NPT Thermostat Switch Wire Kit

Fluid Cooler:

• Universal 13 row plate and fin aluminum heavy duty transmission cooler kit.
• Extend transmission life by helping prevent heat-related transmission failures.
• Perfect for light to medium duty car, truck or SUV use with occasional towing.
• 1 1/4" wide plates and embossed turbulators, which maximize heat transfer.
• Dimensions: 2" x 8.4" x 13.4" with AN male hose fittings and BTU 21000.

Electric Fan:

• Universal 12 volt high performance 6" inch small electric cooling fan.
• Upgraded 90 watt motor draws 7.5 amps, producing over 513 CFM.
• Configured as an air puller to be on the inside and pull air through.
• Includes mounting bracket feet and complete install fin tie strap kit.
• Measures 7.2" x 7" x 2.4" thickness at center and slim 1.4" at edge.

Wiring Kit:

• Universal automotive electric fan 5-pin 40A relay switch harness kit.
• 14AWG size wire powers 1-2 cooling fans or 12 volt auto accessories.
• Maximum 30 amp continuous draw with 30A in-line fuse protection.
• A/C override or manual toggle switch wire built directly into harness.
• Installation instructions, wiring diagram and components included.

Thermostat:

• Universal dual pin electric cooling fan powering thermostat switch.
• Standard NPT sized solid brass thread-in temperature probe sensor.
• Preset to power fan or 12v accessory at the selected temperature.
• Threads into block port, radiator, engine cooler or tapped hose line.
• Measures temp of any liquid including oil, water and coolant fluid.
