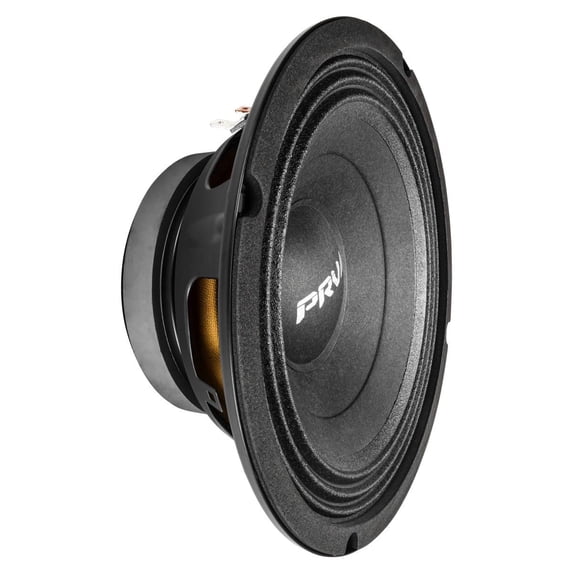

PRV Audio 8MB450-4 v2 8" 4-Ohm 450W Midrange Car Pro Audio Speaker MID

(No ratings yet)

Key item features

Powerful Performance: This 8-inch midrange speaker boasts 450W program power and 225W RMS handling, delivering a smooth lower response through a punchy mid-bass range.
Broad Frequency: Offers a wide frequency response from 75 Hz to 7,500 Hz, ensuring versatile audio reproduction for various applications.
Durable Construction: Features a sturdy steel basket, durable spider suspension, and a 2-inch voice coil with CCAW wire for long-lasting operation.
Accurate Sound: A thick, yet light rigid cone contributes to accurate sound response and efficient power handling.
Versatile Application: Ideal for use as a midrange driver in 3-way loudspeaker cabinets, studio monitors, home Hi-Fi systems, and car audio setups.
Compact Dimensions: With an overall diameter of 8.27 inches (210 mm) and a mounting depth of 3.31 inches (84 mm), it offers flexible installation options.

Generated by AI

Specs

Size
8"
Car speaker size class
8"
Car speaker type
Midrange
Rms power rating
225 W
Peak audio power handling
900 Watts
Speaker elements
2-Way

Current price is $45.91

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $7.00

2-Year Plan - $5.00

How do you want your item?

Ships to

Arrives between May 22 - May 27

Sold and shipped by soundz worth electronics

4.833333333333333 stars out of 5, based on 6 seller reviews(4.8)

Report an issue with this seller

Free 30-day returns

About this item

Product details

The 8MB450 v2, 8″ PRV Audio Pro Audio Mid bass Woofer offers smooth lower response through a punchy mid bass range and the frequency response that takes your applications smoothly through the 7,500 Hz range. The 2″ voice coil, durable spider suspension and the woven surround all supported by the sturdy steel basket ensures its ability to withstand long hours of operation without compromising efficiency of the speaker. A thick, yet light rigid cone ensures accurate response and power handling.

The size and punch of this pro audio driver makes it perfect for a mid range driver in a 3 way loudspeaker cabinet or woofer in your studio monitor and even works great in home Hi-Fi installs. Also a great car audio woofer!

GENERAL SPECIFICATIONS

Nominal Diameter	8″ (203 mm)
Nominal impedance	4 Ohms
Rated AES Power Handling (RMS)	225 Watts
Program Power	450 Watts
Sensitivity 2.83V at 1m	93.5 dB
Recommended Hi Pass Crossover For Full Power Handling	120 Hz 12db Per Octave Crossover
Frequency Response at -10dB	75 – 7,500 Hz
Voice Coil Diameter	2″ (50 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	12.0 mm
Former Material	Kapton
Magnetic Gap Depth	6.0 mm
Frame Material	Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	18.18 l
Excursion (mathematical)***	Xmax	4.5 mm
Free Air Resonance	Fs	74.72 Hz
Mechanical Factor	Qms	26.56
Electrical Factor	Qes	1.09
Total Factor	Qts	1.05
Cone Area	Sd	241 cm²
Mechanical Mass	Mms	20.14 g
Bl Factor	Bl	7.37 Tm
Dc Resistance	Re	6.3 Ohms
Inductance	Le	0.25 mH at 1 kHz
Mechanical Mass Without Air	Mmd	18.03 g
Mechanical Compliance	Cms	0.225 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter	8.27” (210 mm)
Front Mount Baffle Cutout	7.17” (182 mm)
Mounting Depth	3.31” (84 mm)
Overall Depth	3.61” (91.5 mm)
Net Weight	4.10 Lbs (1.86 kg)
Shipping Weight	4.54 Lbs (2.06 kg)
Carton Dimensions W x L x H	9.05” x 9.05” x 4.72” (230 x 230 x 120 mm)

PRV Audio 8MB450-4 v2 8" 4-Ohm 450W Midrange Car Pro Audio Speaker MID

GENERAL SPECIFICATIONS

Nominal Diameter	8″ (203 mm)
Nominal impedance	4 Ohms
Rated AES Power Handling (RMS)	225 Watts
Program Power	450 Watts
Sensitivity 2.83V at 1m	93.5 dB
Recommended Hi Pass Crossover For Full Power Handling	120 Hz 12db Per Octave Crossover
Frequency Response at -10dB	75 – 7,500 Hz
Voice Coil Diameter	2″ (50 mm)
Voice Coil Wire	CCAW
Voice Coil Winding Depth	12.0 mm
Former Material	Kapton
Magnetic Gap Depth	6.0 mm
Frame Material	Stamped Steel

THIELE-SMALL PARAMETERS

Equivalent Volume	Vas	18.18 l
Excursion (mathematical)***	Xmax	4.5 mm
Free Air Resonance	Fs	74.72 Hz
Mechanical Factor	Qms	26.56
Electrical Factor	Qes	1.09
Total Factor	Qts	1.05
Cone Area	Sd	241 cm²
Mechanical Mass	Mms	20.14 g
Bl Factor	Bl	7.37 Tm
Dc Resistance	Re	6.3 Ohms
Inductance	Le	0.25 mH at 1 kHz
Mechanical Mass Without Air	Mmd	18.03 g
Mechanical Compliance	Cms	0.225 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4

EXTRA INFO

Overall Diameter	8.27” (210 mm)
Front Mount Baffle Cutout	7.17” (182 mm)
Mounting Depth	3.31” (84 mm)
Overall Depth	3.61” (91.5 mm)
Net Weight	4.10 Lbs (1.86 kg)
Shipping Weight	4.54 Lbs (2.06 kg)
Carton Dimensions W x L x H	9.05” x 9.05” x 4.72” (230 x 230 x 120 mm)
