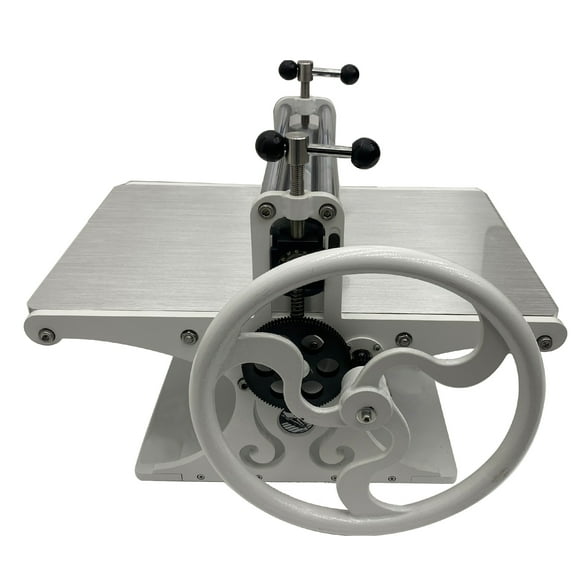

Portable Print Making Machine High Precision Manual Roller Printing Engraving Machine Clay Press White

Introduction:
This machine is a manual professional high precision roller rolling printmaking press, its appearance design is beautiful, with high precision, high pressure, simple operation and so on. This machine is suitable for universities, social groups, professional studios, personal studios, portable, efficient use. Maintenance and repair are also easy.

Product parameter:
Table size: 328*500mm
Machine size: 500*430*370mm
Panel material: 10mm thick high strength aluminum alloy, surface metal drawing anodized treatment
Upper roller material: High strength steel pipe electroplating mirror polishing
Main structure: High strength steel plate, original shape design to ensure strength on the basis of hollowing weight reduction
Handwheel: Cast iron production, more stable rotation
Weight: 45KG

Installation method：
1．It can be placed on a stable and strong desktop, and there should be at least 30CM operating space on one side of the panel moving direction.
2.Knob mounting：Unscrew one of the black powerwood balls on one side of the knob lever, insert it into the hole at the top of the adjusting lever, and then tighten the unscrewed black powerwood ball. The other one does the same.
3.Handwheel mounting：First check whether the hole is smooth and remove foreign matter, and then align the hole with the rocker and insert it. If the hole is not smoothly inserted, knock it with a hammer with moderate force, and pad the wood block or thick book to protect the paint surface. Finally, use the screw to cover the gasket and lock the handwheel with a wrench.
NOTE: When inserting holes, make sure that the keyway is aligned with the key bar.

Item Number: 024263
Print Making Machine（White）
