1200kg KIT SET Sliding Gate Opener Operator Automatic Door Opening Motor 4m Or 5m Rails Racks

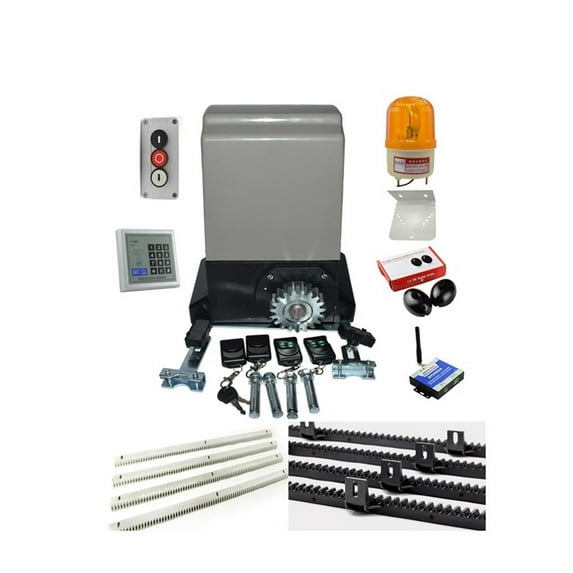

Kit contents:

kit 1 is with a motor+4 remote controls+4m racks;

kit 2 is with a motor +4 remote controls+1 photocell+1 flashing lamp+1 push button+4m racks;

kit 3 is with a motor +4 remote controls+1 photocell+1 flashing lamp+1 push button+1 wired RFID 125khz keypad reader+4m racks;

kit 4 is with a motor +4 remote controls+1 photocell+1 flashing lamp+1 RFID keypad+1 GSM module(GSM network, not for 3G network, , , NZ should choose 3G version with extra USD25 to be added)+4m racks;

kit 5 is with a motor+4 remote controls+5m racks;

kit 6 is with a motor +4 remote controls+1 photocell+1 flashing lamp+1 push button+5m racks;

kit 7 is with a motor +4 remote controls+1 photocell+1 flashing lamp+1 push button+1 wired RFID 125khz keypad reader+5m racks;

kit 8 is with a motor +4 remote controls+1 photocell+1 flashing lamp+1 RFID keypad+1 GSM module(GSM network, not for 3G network, , , NZ should choose 3G version with extra USD25 to be added)+5m racks;

Power supply AC220V 50HZ,550W

output torque 22N.m

max gate weight 1200KG,

motor speed 1400r/min

gate speed 12m/min

limit switch magnetic

noise 56DB

protection class IP44, outdoor use

Features:

1.Soft start and stop avoids impact to the gate when it is opening and closing.

2.Die-casting A-alloy mechanism with powder spraying, stable and solid.

3.Electromechanical travel limit switches provide double protection and accurate positioning.

4.Emergency release key in case of power failure.

5.Optional line control or remote control.

6.Movement indication - the indicator lights up when the door is moving.

7.Infrared protection to ensure high security.

8.Built-in max motor running time( MRT) adjustable for multiple safety protection.

9.Motor coil using copper production.

1 for magnetic limit switch input

2 for motor wire input

3 for power input

4 for adjusting the torque force

5 for for adjusting closing force

6 dip switch for multi function setup

7 is learning button to program remote control(press learn button, then press any key of remote control two times to add remote controls)

8 is testing button to test the motor;

9 for change the motor running direction

10 for flashing lamp input

11 is remote control receiver

12 for photocell, manual button, keypad and gsm input
