Tuya Auto Gate Control Opener Opening Door Garage 433 Gate External Receiver 12v 24v 220v Wireless Portal Control Modules

App Remote Control

Control your garage door opening and closing from any location with the Tuya/Smart Life App

Simple connection

Connect your motor, engine, receiver to use, very convenient simple answer

lnching Setting

Set up a countdown mode, click once to turn it on and then set 2-3600s to turn it off automatically

RF Control

Compatible with fixed code, scrolling code, learning code 433MHz RF remote control, the remote control can still work normally after is disconnected.

Family Staff Sharing

Once you're connected, you can share the device directly with your family members without having to pair it again!

Connection Diagram for Garage

Wiring Diagram for Switch to Control Lights

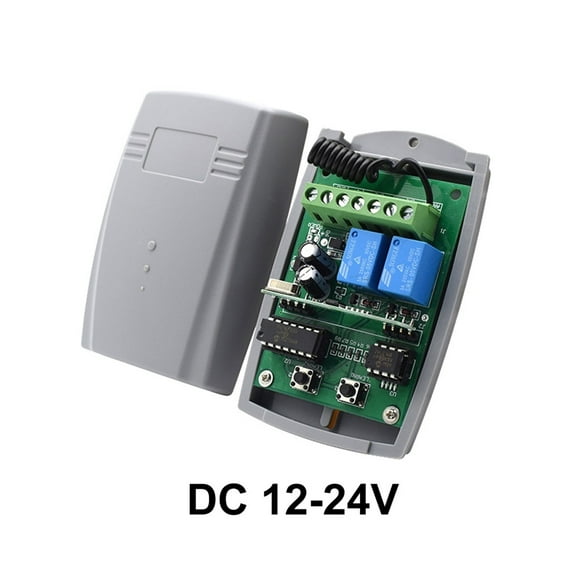

SMG-822 Receiver without function

Features

The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code (2262, 2260,2264,5326,M1E,M5E etc), learning code (1527, 2240, 6P20B, 6P20D etc). roling code (HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc) and a part of customized remote controller.

Products advantage

1,Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

2,2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

3,The maximum number of remote controllers stored is 400, which is enough for the entire community to use.

4,It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service!

SECIFICATIONS:

1. Power supply: 12v-24v DC

2. Frequency: 433.92Mhz

3. Codes: can work with any fixed/learning/rolling codes

4. 2 channel

5. Working temperature :-40- + 80

6.Built in Aerial antenna : Reception range 10-50m

Momentary working mode

PROGRAMMING:

1.Learning transmitter's codes:

Press "learn 1" or "learn 2" for 1 second, the "learn_led" light, then, press the button which you choose on the transmitter till the "learn_led" flash and go out, the transmitter's code has been stored.

Repeat the above steps for other transmitters.

2.Erasing transmitter's codes:

Press "learn 1" or "learn2" and hold on to make the "learn_led light till go out, all codes of transmitters which had been stored are erased.

Circuit diagram

ANT - Receiver Antenna

CH1 - Relay Output 1

CH2 - Relay Output 2

V+ - Voltage +

GND - Ground
