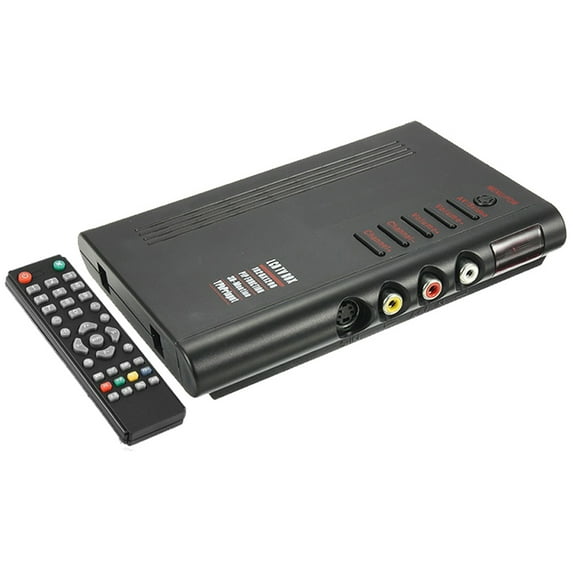

RF Coax Cable TV To VGA Video Audio Demodulator - TV Tuner For NTSC PAL

This analog cable TV tuner doubles as a video up-converter and switcher.

Mainly designed to work with analog coax TV signals such as cable TV or satellite channels, closed circuit TV channels or other RF modulated signals by converting such coax feeds into high resolution VGA formats for visual entertainment or further A/V broadcast and distribution.

With the help of advanced video processor built in, this coax TV channel converter delivers outstanding 1920x1200 pixels VGA format with sharp video quality that surpasses regular TV displays.

TV channel or video input source selection and other functions can be controlled by using the supplied IR remote or push buttons on the unit. Manual buttons are for basic functions like power on/off, video input selection, TV channel up/down and volume control.

Universal Analog TV Tuner With VGA Output
The RF input of this TV tuner converter supports worldwide analog RF TV channel frequencies and standards including NTSC, PAL B/G and PAL D/K system.

RF Coax CATV Channel Demodulator
This TV video converter switch is an easy add-on tuner module for those LCD monitors projectors that do not have TV tuner built in or LCD TV with broken RF terminals. It can demodulate the RF outputs from all coax video sources such as cable set top boxes, video modulators, surveillance DVR systems and so on.

This RF TV demodulator can also be used for those satellite receivers with modulated TV2 out from DirecTV, Dish Network and all other Free-To-Air set top boxes for all regions. Please make sure that the coax output from your satellite set top box can be displayed on channel 3, 4 or other TV channel or contact your satellite TV provider for verification.

Multi-Format Analog Video To VGA Scaler Switcher
This multi-function TV video converter unit supports total of 4 video inputs including coax, composite RCA, S-Video and VGA Input.

Product Features

• Universal TV tuner design supports worldwide RF frequencies for all NTSC, PAL B/G and PAL D/K system.
• Easy add-on TV tuner module for all VGA-based monitor or projector without coax input.
• Decoding RF coax signals from cable outlet, satellite box, RF modulator or CCTV surveillance camera system to sharp VGA pixels for display.
• 4 selectable video inputs: RF/Coax, RCA A/V, S-Video and VGA pass through.
• Excellent video to VGA converter for converting interlaced video into progressive VGA type for great video clarity and sharpness.
• Selectable 10-level VGA RGBHV output resolutions with maximum output up to 1920 x 1200 and 1920 x 1080 pixels.
  Supports Picture-In-Picture function for watching cable TV or video from a sub-window while the compute takes the main screen.
• PIP TV video sub-window can be resized from 1/16, 1/9, 1/4 screen or full screen display.
• PIP window screen location can be re-positioned among 5 preset locations, upper left corner, upper right corner, center, lower left corner and lower right corner.
• Premium motion adaptive de-interlacer built in for minimizing jagged edges noticed on big screen.
• Provides crisp and clear images with true and brilliant color definition.
• Adjustable controls of video color elements for brightness, contrast, hue, saturation, color temperature and picture modes.
• Supports all NTSC and PAL systems with automatic video mode detection.
• Supports sleep timer function for powering off the unit after a pre-set time interval.
• Full-function IR remote controller.
• Featured with built-in speaker for direct audio output.
• Easy operation by IR remote provided or manual push buttons on the converter unit.
• Compact and stylish design.
