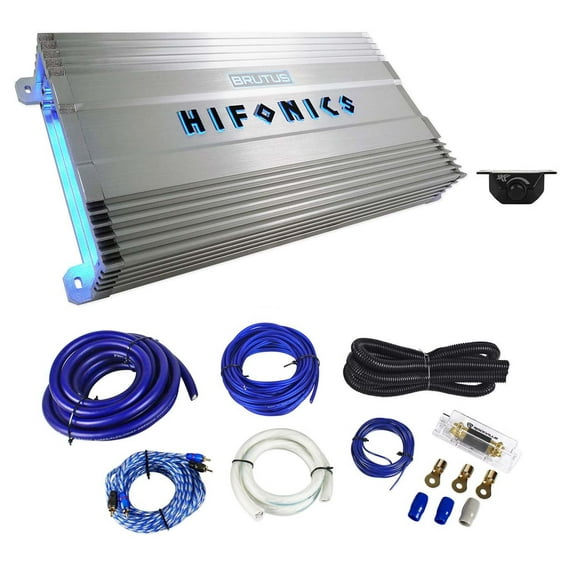

Hifonics BG-3300.1D BRUTUS Gamma 3300 Watt Mono Car Amplifier Class D+Amp Kit

Package Includes:
(1) Hifonics BG-3300.1D BRUTUS Gamma 3300 Watt Mono Car Audio Amplifier Class D Amp
(1) Rockville RWK01 0 Gauge Complete Car Amp Wiring Installation Wire Kit w/ RCA's

Features of BG-3300.1D:
Low Noise Preamplifier Circuit: Maximum low voltage signal from the source unit comes into the amplifier circuit with minimal distortion.
RCA Inputs: Nickel-plated RCA jacks create the most effiecient High/Low Level audio connection and resist corrosion.
Operation Mode: Mono only
Crossover Type: Variable electronic crossovers allow for complete control of the sound.
Electronic Equalizer: Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
Class/Topology: Super D-Class™ designs which employ high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels, Hifonics amplifiers with Super D-Class circuitry result in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs.
Output Device Technology: Pro-Fi™ Output Device Technology, The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.
Heat Sink: Classic aluminum Hifonics design to minimize heat build up on the Ultra-Fi™ output devices
Power Supply: Simpatico Coil Design
The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.
Output Connections: High temperature impact resistant nickel plated connectors with allen head set screws which allow for secure termination of wire and creates an erosion resistant seal.
Connection Type: Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire mangement profile.
Specifications:
CEA Standards: CTA-2006B Compliant. CTA stands for Consumer Technology Association and Hifonics has been a member for decades.
Class: Super D Class™
Total Channels: 1
Power @ 1 Ohm (ch x watts): 1 x 3300
Power @ 2 Ohms (ch x watts): 1 x 1650
Power @ 4 Ohms (ch x watts): 1 x 825
Crossover: Variable Electronic 12dB Per Octave
Variable Low Pass Crossover 12dB per Octave: 30Hz-250Hz
Tone Control/Parametric EQ: Built-in bass control
Bass Boost: 0-10dB
Subsonic Filter: 15Hz-35Hz
Phase Shift: 0-180 Degrees
Variable Voltage: .2 to 9V
Frequency Response: 10Hz-500Hz
Total Harmonic Distortion (THD): < 0.10%
Speaker Level Audio Inputs: Yes
Power Terminal 12v/GND: 2 AWG

Features:
Rockville RWK01 0 AWG (American Wire Gauge) Complete Car Amp Installation Wire Kit
17’ – 0 Gauge Translucent Blue SuperFlex Power Cable
3’ – 0 Gauge Translucent Black SuperFlex Ground Cable
Gold Plated ANL Heat Resistance Fuse Holder
200 Amp ANL Gold Plated Fuse
1 – 17’ High
