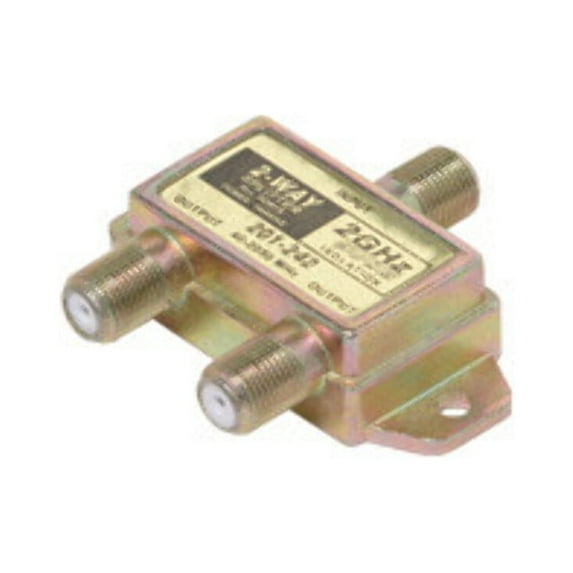

2-Way 2.4GHz 90dB Power Pass Splitter

Steren 201-242 2-Way 2 GHz 90 dB Satellite Splitter.  All Port DC Power Passive RF Shielded

Specifications:

• 90 dB min RFI Shielding
• Epoxy-Sealed Back-Cover
• High-Performance Printed-Board Circuitry
• Improved Hum Modulation and Inter-modulation
• Yellow-Chromate Plating
• Zinc-Alloy Cast Housing
• 3/8 Precision Machined F-Connector Threads
• Mounting Tabs with Screws
• Cast-In Ground Block
• DC Power Passing to One or All Ports for Remote LNB-Powering Applications and Powering Antenna Pre-Amplifier from Headend
• F-ports accommodate security tools
• DC Power Passing to All Ports
• DC Power Forward Bias
• Insertion Loss: 4.6 dB max.
• Port-Port Isolation: 15 dB min.
• Input Return Loss: 30 dB min.
