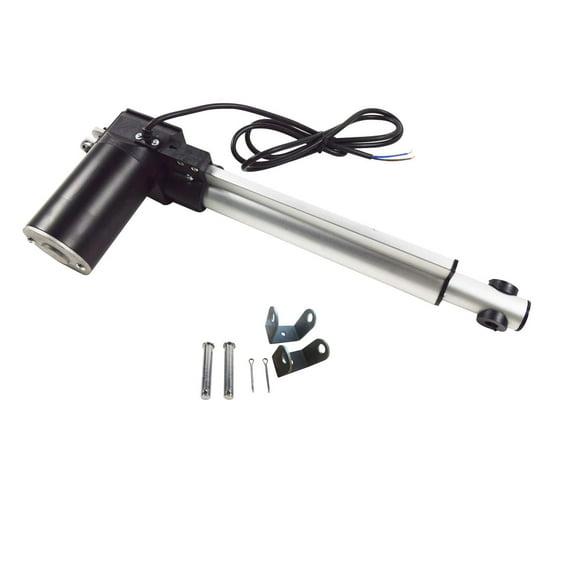

TECHTONGDA 12V Electric Linear Actuator Motor 8inch Heavy Duty Actuators Controller

Product Description:
Input Voltage :12V DC
Stroke Length :S = 200mm (8inch)
Min Installation Dimension:L=S+175mm
Max Installation Dimension:A= 2S+175mm
Max Push Load :6000N (1320lbs)
Max Pull Load :4500N (990lbs)
Speed :5~7mm/s
Operating frequency :Max 25%
Duty Cycle :25%
Protective Class :IP54
Operation Temperature:-26~85℃
Control Mode :Positive & Negative
Linear actuators are widely used in many industries, such as electric power, machinery, metallurgy, mine, petroleum, chemical industry, transportation, lifting, construction, food and feed processing and so on.
With reliable performance, sensitive action stable running, the same characteristics of push and pull and good environment adapt- ability etc.
Items included:
1 set of Linear Actuator(6000N,200mm,12V DC) (021054)
