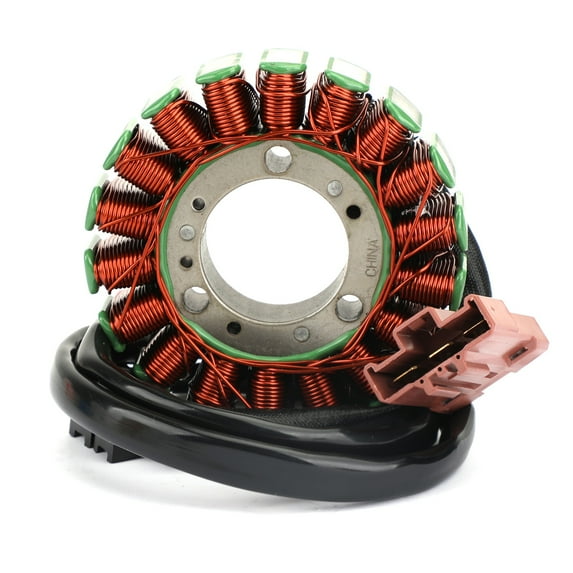

Motor Genic Alternator Magneto Stator for Gilera Nexus 500 1998-2011 58080R 82736R AP8560100

Magneto Generator Engine Stator Coil Fit For Gilera Piaggio Aprilia AScarabeo Malaguti 400cc 500cc

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

Dimensions :
Interior diameter : 36.7mm / 1.44 inches
Exterior diameter : 96mm / 3.77 inches
Pole's Thickness : 28.7mm / 1.12 inches
Pole's Width : 11.9mm / 0.46 inches

Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+3)
Number of poles: 18

PART NUMBER(S):
58080R
82736R
58039R
828677
AP8560100
48201900

FITMENT:
Fits Gilera Nexus 500 1998-2005
Fits Gilera Nexus 500 SP E3 2006-2011
Fits Gilera Nexus 500 E3 2006-2011

Fits Piaggio Beverly 500 1998-2012
Fits Piaggio Beverly 500 le E3 2005-2012
Fits Piaggio Beverly 400 Ie E3 2006-2009
Fits Piaggio X9 500 1998-2005
Fits Piaggio X9 500 Evolution 2006-2007
Fits Piaggio X9 500 Evolution ABS 1998-2007
Fits Piaggio X8 400  Ie Euro 3  All Years
Fits Piaggio X Evo 400 Euro 3 2007-2011

Fits Aprilia Atlantic 500  (with 1 cable) 2001-2004
Fits Aprilia Atlantic 500 Sprint  (with 1 cable) 2005-2008
Fits Aprilia Atlantic 400 Sprint  (with 1 cable) 2005-2008
Fits Aprilia Fits AScarabeo 500  (with 1 cable) 2003-2006
Fits Aprilia Beetle Light 400  (with 1 cable) 2006-2008
Fits Aprilia Beetle Light 500  (with 1 cable) 2006-2008

Fits AScarabeo Fits AScarabeo 500 (with 1 cable) 2003-2008
Fits AScarabeo Fits AScarabeo 500 Light (with 1 cable) 2003-2008
Fits AScarabeo Fits AScarabeo 492 Light (with 1 cable) 2003-2008
Fits AScarabeo Fits AScarabeo 400 Light (with 1 cable) 2003-2008

Fits Malaguti Spidermax 500 GT  (with 1 cable) 2004-2007

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
