3 Axis Set/Kit For Lathe Milling Machines Digital Readout + Linear Encoders 5U Scale Measuring 50 To 1000mm Travel Length

(No ratings yet)
3 Axis Set/Kit For Lathe Milling Machines Digital Readout + Linear Encoders 5U Scale Measuring 50 To 1000mm Travel Length3 Axis Set Kit For Lathe Milling Machines Digital Readout Linear Encoders 5U Scale Measuring 50 To 1000mm Travel Length3 Axis Set Kit For Lathe Milling Machines Digital Readout Linear Encoders 5U Scale Measuring 50 To 1000mm Travel Length

Key item features

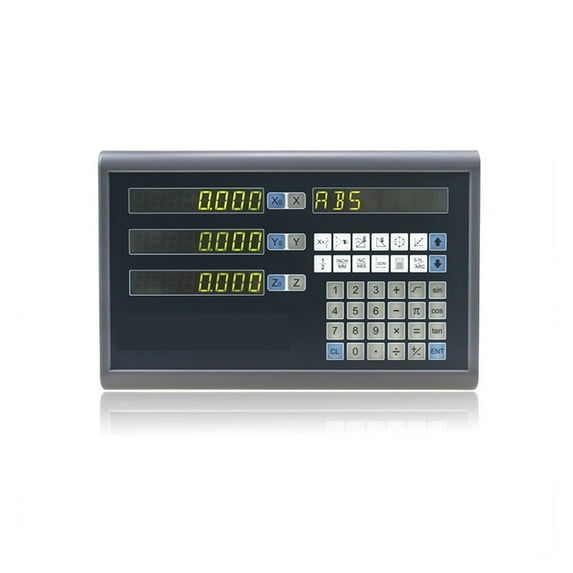

  • 3 Axis Set Digital Readout System VM600-3 and 3 PCS 5u linear optical ruler dimension 50-1000 for lathe/mill machine
  • digital readout system functions
  • 1:Zero clearing
  • 2:Reset
  • 3:mm/inch mode
  • 4:ABS/INC coordinate conversion
  • 5:200sets sub datum
  • 6:Power off Memory;
  • 7:Center of1/2
  • 8:Liner error compensation
  • 9:Sleepping mode
  • 10:Clear 200 sets Sdm datum;
  • 11:ABS/INC mode
  • 12:Calculator
  • 13:Drilling of circumference
  • 14:Drilling of oblique line
  • 15:Machining of inclined plane
  • 16:Machining of circular arc
  • 17:Lathe function(match)
  • 18:Rectangular lumen gradual processing
  • 19:Digital filtering
  • 20:Vibration filtering
  • 21:Radius /Diameter fucntion
  • 22:Lathe function
  • digital readout system parameter
  • 2.Acceptable Signal: TTL
  • 4.Acceptable resolution: 10um ,5um ,2um ,1um , 0.5um
  • smaller, better performance
  • . Take less space on your machines.
  • 3. can widely used for mill, lathe, drilling, boring, wire cutting & EDM machine
  • 5U Linear scalsLinear encoder/Linear sensor/Linear ruler Parameters
  • 1. Travel (measuring) length: 0-1000mm / 0-40inch
  • 2. Total (overall) length: Travel length + 140mm (0-1140mm)
  • 3. : DB9
  • 4. Resolution: 0.005mm(5u), {we can offer you 1u(0.001mm), 0.5u(0.0005mm), need extra fee.}
  • 5. Input voltage: 5V
  • 6. Grating pitch: 0.02mm (50LP/min)
  • 7. Cable length: 3 Meter
  • 8. Normal size: About 22*34
  • The Signal of 5U Linear optical ruler/Linear glass scales/Linear encoder/Linear sensor
  • Pin 2 Black 0V
  • Pin 6 Green A
  • Pin 7 Red 5V
  • Pin 8 White B
