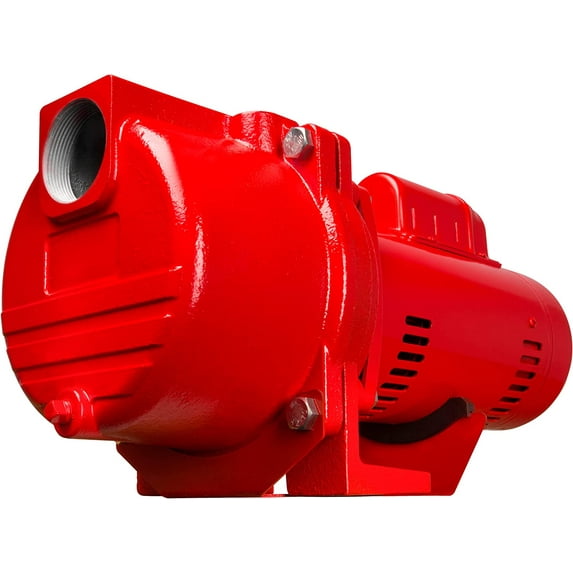

Red Lion Brass Impeller Sprinkler Pump, RL-SPRK150-BR, 1.5Hp

Power your sprinkler or other irrigation system easily and reliably using this Red Lion Brass Impeller Sprinkler Pump. The cast iron body, streamlined shape, and hardy motor make this pump fantastic for transferring water, irrigating your garden, or supplementing your home water pressure. Its 2" diameter suction is great for a full water flow, and the discharge accepts 1 1/2" piping to direct the water toward your supply system or holding tank. The robust, brass impeller offers durability and efficiency, and the cast iron casing lasts for seasons of service. A plug at the top of the pump removes for priming the item up to 25' prior to use. The heavy duty, single phase, 1 1/2 horsepower motor runs on either 115 or 230 volts for versatility and plenty of water movement. This unit has a maximum flow rate of 71 gallons per minute, and a working maximum pressure of 47 PSI. Place the attached, bottom bracket on a level surface as close as possible to your water source, and use bolts to secure it in a protected area for optimal performance. Keep your garden irrigation or turf sprinkler system properly working with this Brass Impeller Sprinkler Pump. Two year limited warranty.

Pump Performance
Use this chart to ensure the proper size pump for your application. The discharge pressure will vary based upon your application and length and diameter of pipes. Gallons Per Minute (GPM) represents the maximum amount of water your pump is capable of pushing at a given discharge pressure. To reduce discharge pressure and frictional losses, increase the pipe diameter.

Discharge Pressure	Gallons per Minute
10 psi	71
20 psi	60
30 psi	44
40 psi	15
47 psi	shutoff

Model Number: RL-SPRK150-BR
Dimensions: 18.5"L x 8.5"W x 10"H
Inlet: 2" NPT pipe
Discharge: 1 1/2" NPT pipe
Maximum Flow: 71 gpm
Maximum Pressure: 47 PSI
Priming Height: up to 25'
Power: 1 1/2 Hp, 18.6 or 9.3 amps
Voltage: single phase, 115 or 230 volts
Construction: cast iron, metal
Mfg. Warranty: 2 year limited warranty
